Preparing Advanced Identity Cloud or PingAM for FIDO in JavaScript

PingOne Advanced Identity Cloud PingAM JavaScript

Before enabling FIDO authentication in your JavaScript apps you must configure your authentication journeys for FIDO.

Configuring authentication journeys for FIDO on JavaScript

Authentication journeys for FIDO primarily use these nodes:

WebAuthn Registration Node

Handles the creation and storage of new passkeys.

WebAuthn Authentication Node

Manages the sign-in process by issuing and verifying challenges.

Here’s a sample journey that supports passkeys end-to-end. It tries a passkey sign-in first, and falls back to a username and password for users who haven’t registered a passkey yet. Because registering a passkey requires an authenticated session, the journey only offers to register one after a successful sign-in.

Sample passkey journey combining WebAuthn authentication, a password fallback, and passkey registration
Figure 1. Sample passkey journey

To use FIDO with a JavaScript application, configure each WebAuthn Registration node and WebAuthn Authentication node in your authentication journey.

Use the same configuration values in each WebAuthn Registration node and WebAuthn Authentication node in the journey.

Configuration mismatches between these nodes cause authentication to fail.
Each WebAuthn Registration node and WebAuthn Authentication node

  1. In Origin domains, enter the URL where you host your JavaScript app.

    For example, https://app.example.com.

    If you leave Origin domains empty, the server uses the origin of incoming requests as an accepted origin.

  2. Optionally, to support usernameless sign-in, enable Username from device in the WebAuthn Authentication node, and Username to device in the WebAuthn Registration node.

Each WebAuthn Registration node

  1. In Accepted signing algorithms, include one or more of ES256 and RS256.

  2. Ensure the Limit registrations option is not enabled.

  3. Optionally, use the Authentication attachment property to control the type of authenticators available for registration:

    PLATFORM

    Only allow authenticators built into the user’s device, such as Face ID, Touch ID, or Windows Hello.

    CROSS_PLATFORM

    Only allow external authenticators, such as security keys.

    UNSPECIFIED

    Allow either type (default).

Configuring the journey for passkey autofill (WebAuthn conditional UI)

Passkey autofill, also known as WebAuthn conditional UI, lets a user sign in with a saved passkey directly from the browser’s autofill suggestions when they tap or click the username field, without a separate button.

To support passkey autofill, add the Platform Username node (or Username Collector node in a standalone PingAM deployment) and the WebAuthn Authentication node to the same page using a Page node. Optionally, add a Platform Password node to the same page as a fallback for users who don’t have a registered passkey:

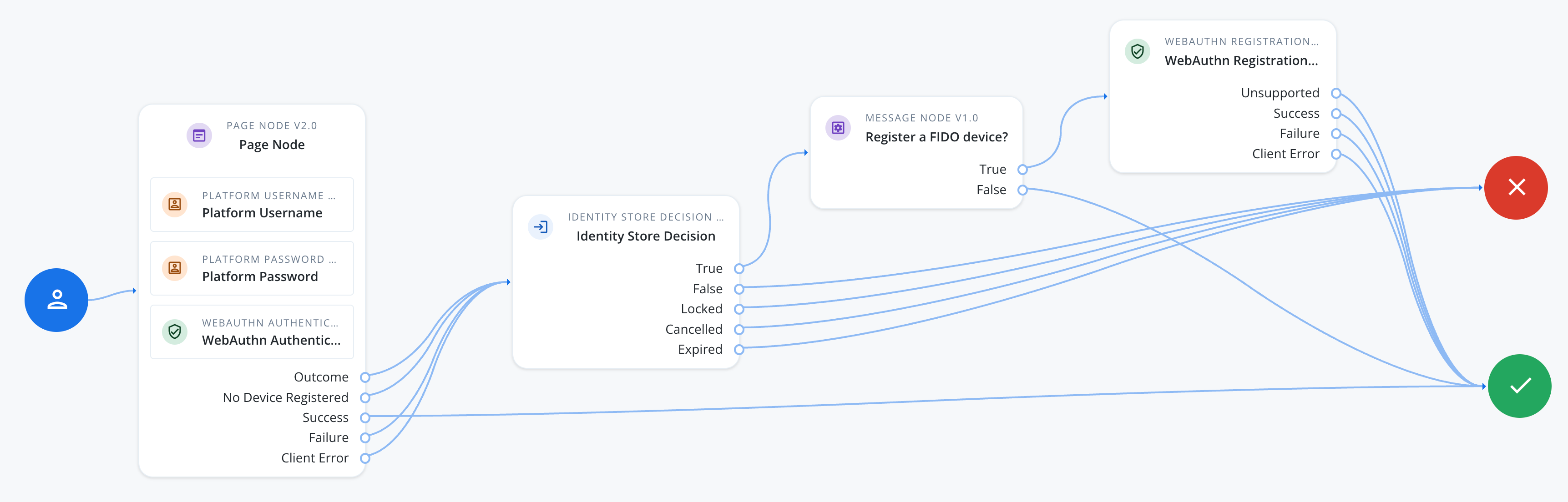

Sample passkey journey with autofill enabled, combining a page node for username and password entry with WebAuthn authentication and registration
Figure 2. Sample passkey journey with autofill enabled

In the Platform Username node (or Username Collector node):

  1. In Autocomplete Values, add username and webauthn, in that order.

    This tells the browser to show passkey suggestions alongside stored usernames in the autofill dropdown.

    The result resembles the following:

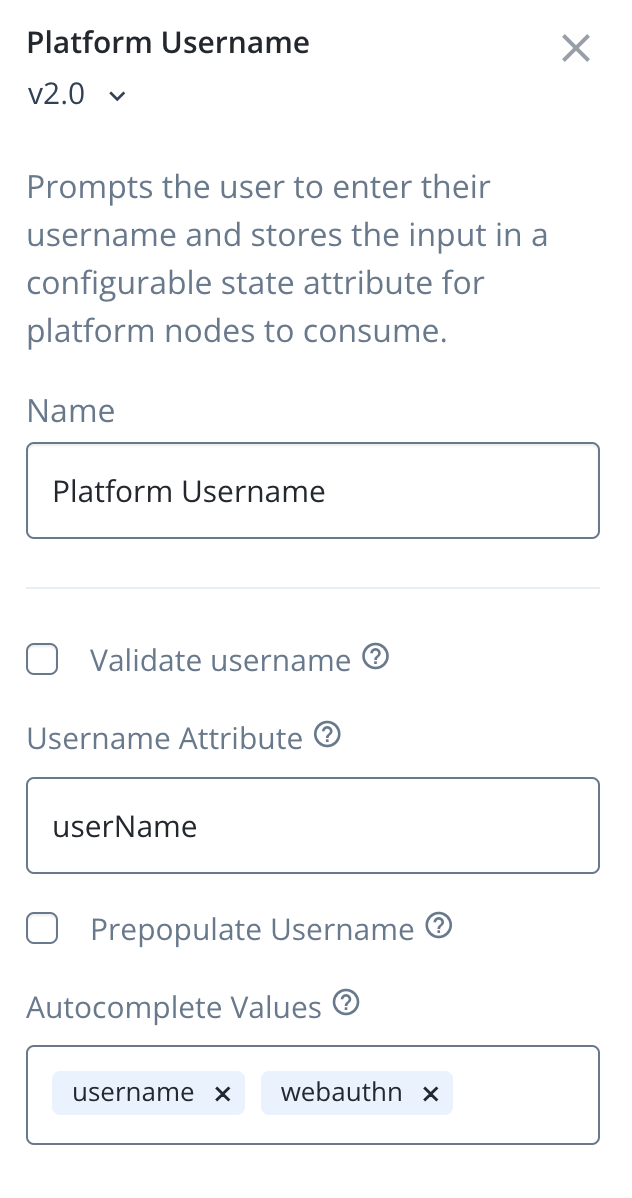

    Configuring username nodes for passkey autofill
    Figure 3. Configuring username nodes for passkey autofill

In the WebAuthn Authentication node:

  1. In Mediation, select CONDITIONAL.

    This lets the SDK request the passkey challenge silently in the background, so the browser can show a matching passkey as an autofill suggestion as soon as the user focuses the username field.

    The result resembles the following:

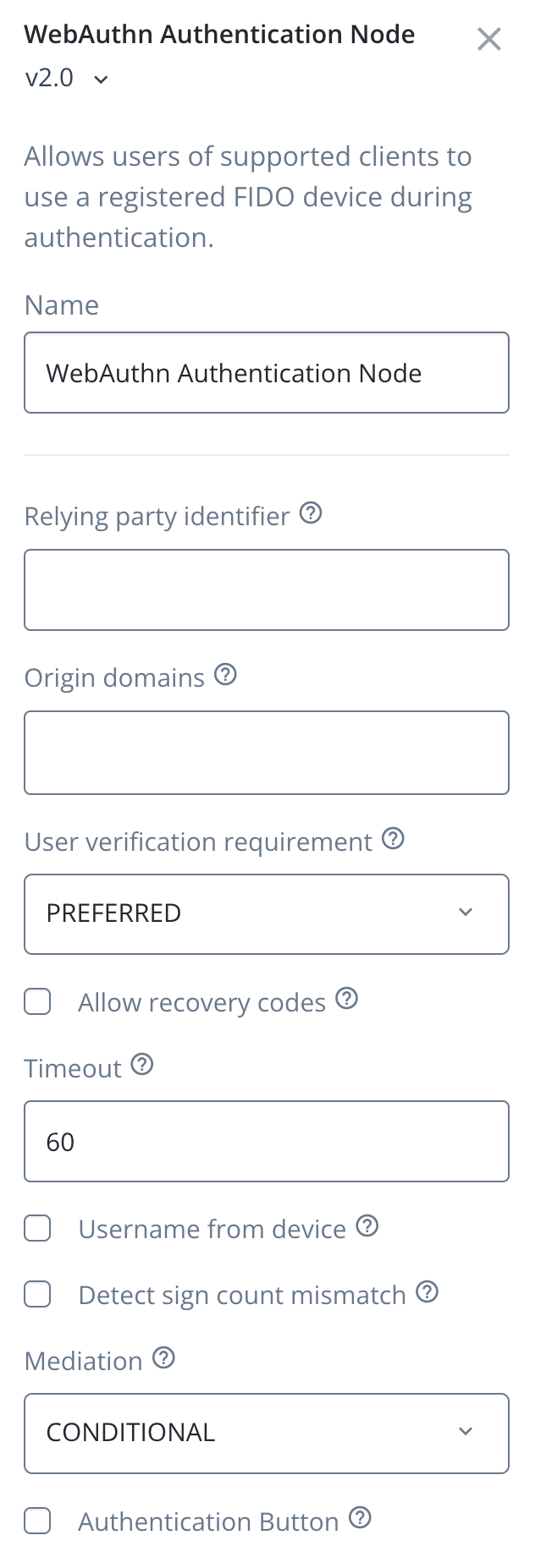

    Configuring WebAuthn Authentication nodes for passkey autofill
    Figure 4. Configuring WebAuthn Authentication nodes for passkey autofill

Handling client errors

The WebAuthn Registration node and WebAuthn Authentication node each have a Client Error outcome. The SDK reaches this outcome when the underlying WebAuthn operation fails for a reason that isn’t a simple pass/fail, for example an unsupported authenticator, a timeout, a network problem, or a device in an unexpected state.

The outcome carries the error as a string in the ERROR::<name>:<message> format, where <name> is a standard DOMException error name, such as NotAllowedError or InvalidStateError.

To handle these errors individually rather than as a single generic outcome, add a Scripted Decision node after the Client Error outcome. Configure the script to read the error string from shared state, extract the error name, and map it to an outcome your journey can branch on:

Extracting the WebAuthn error name in a Scripted Decision node
// Error format: ERROR::<name>:<message>
// Example: ERROR::InvalidStateError:No Credential is registered
var error = sharedState.get("WebAuthenticationDOMException");
var result = error.match(/::([\w\s]{1,}):{0,}/);
outcome = result ? result[1] : "UnknownError";

The script above only extracts the error name, but a Scripted Decision node is a good place to add logic beyond simple routing, such as logging the full error message for troubleshooting, incrementing a counter to detect repeated failures from the same device, or recording metrics on which errors occur most often.

Sample passkey journey with the Client Error outcome of both the WebAuthn Authentication node and the WebAuthn Registration node routed to a Scripted Decision node with an outcome for each WebAuthn error name
Figure 5. Sample passkey journey with client error handling

Configure an outcome for each error name your app can produce:

AbortError

The operation was aborted, for example the app cancelled an in-progress request.

Route back to the passkey sign-in step.

ConstraintError

The authenticator can’t satisfy a requested option, such as a resident key.

Route to a password fallback.

DataError

The request contained invalid or malformed data.

Log for troubleshooting; this usually points to a configuration issue rather than something the user can fix.

EncodingError

Encoding or decoding the credential data failed.

Log for troubleshooting; this usually points to a configuration issue rather than something the user can fix.

InvalidStateError

The user tried to register a passkey that’s already registered.

Route to a message telling the user the passkey is already registered.

NetworkError

A network problem prevented the operation from completing.

Route back to the passkey sign-in step so the user can retry.

NotAllowedError

The user cancelled the prompt, or no authenticator matched.

Route back to the passkey sign-in step so the user can try again, or fall back to a password.

NotSupportedError

The device doesn’t support the requested options.

Route to a password fallback instead of retrying WebAuthn.

SecurityError

The operation isn’t allowed in the current context, for example an origin mismatch.

Log for troubleshooting; check your Origin domains and Relying party identifier configuration.

TimeoutError

The operation took longer than the node’s Timeout setting.

Route back to the passkey sign-in step so the user can retry.

TypeError

The request contained an invalid argument.

Log for troubleshooting; this usually points to a configuration issue rather than something the user can fix.

UnknownError

An error occurred that doesn’t map to a more specific outcome, including any error name not listed above.

Log for troubleshooting, and route to a generic failure message.

Next steps

You can now proceed to Integrating FIDO auth journeys in JavaScript.
