Identity for AI

Identifying Agents with Token Exchange

In a standard OAuth flow, an application might impersonate a user, holding a token that allows it to do anything a user can do. This makes the application’s behavior indistinguishable from user-performed actions. In complex agentic architectures (where multiple AI agents are collaborating with each other), this is dangerous, especially if rogue agent activity has an inaccurate audit trail.

The OAuth 2.0 Token Exchange protocol (RFC 8693) defines how to apply the concept of delegation to token exchange. In simple terms, an agent’s authentication token can show "I’m Agent A, and I’m performing a specific action requested by Agent B, to complete a task for User C."

This approach is superior to others, such as secret vault retrieval, as the agent never possesses live credentials. The agent only possesses a finely-scoped access token after the end user triggers token exchange.

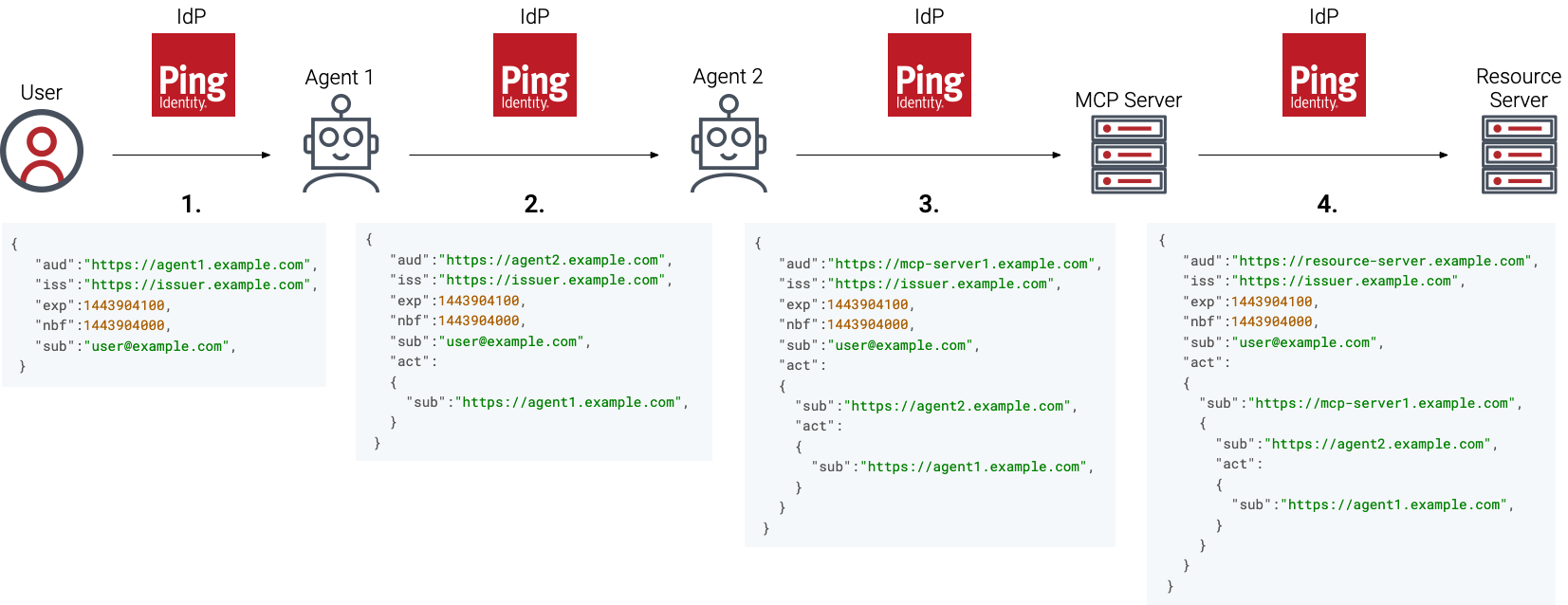

The following graphic illustrates a daisy-chain of these delegations, where multiple agents are working together and communicating with a Model Context Protocol (MCP) server to solve a problem on behalf of the user.

A diagram showing each step of token exchange between a user, two agents, an MCP server and a resource server.

The key to this flow is the act (actor) claim within the JSON Web Token (JWT). With each new agent authentication, a new act claim is appended, creating a nested audit trail of collaboration between agents and servers.

The following describes each authentication in the flow:

  1. User authentication

    The process begins with a human user authenticating with an identity provider (IdP) to use an agent.

    • The exchange: Ping Identity (the IdP) issues a JWT.

    • Key claims:

      • sub (subject): user@example.com (The human).

      • aud (audience): https://agent1.example.com (The “orchestrator” agent the human is communicating with).

    • Meaning: The user is interacting directly with agent 1, so there is no act claim yet.

  2. Agent 1 delegates to agent 2

    Agent 1 needs to offload a task to agent 2. Agent 1 can’t just pass the user’s token because that token is scoped for agent 1, not agent 2.

    • The exchange: Agent 1 contacts the IdP and requests token exchange. It presents the user’s token and asks for a new token valid for agent 2.

    • Key claims:

      • sub: user@example.com (Still the user).

      • aud: https://agent2.example.com (Now valid for agent 2).

      • The act claim:

        "act":
{
  "sub":"https://agent1.example.com",
}

    • Meaning: Agent 1 is the actor requesting agent 2 to perform a task on behalf of the user.

  3. Agent 2 delegates to MCP server

    Agent 2 now needs to access a tool or resource through an MCP server.

    • The exchange: Agent 2 sends the token it received from agent 1 to the IdP and requests a token scoped for the MCP server.

    • Key claims:

      • sub: user@example.com (Still the user).

      • aud: https://mcp-server1.example.com (Valid for the MCP server).

      • The nested act claim:

        "act":
{
  "sub":"https://agent2.example.com",
  "act":
  {
    "sub":"https://agent1.example.com",
  }
}

    • Meaning: Now, agent 2 is the actor performing token exchange with the MCP server, having been triggered by agent 1. The user is still the original owner of the request.

  4. MCP server calls the resource server

    The MCP server now needs to access the resource server to complete the user’s task.

    • The exchange: The MCP server presents its token from agent 2 and requests a new token scoped for the resource server.

    • Key claims:

      • sub: user@example.com (Still the user).

      • aud: https://resource-server.example.com (Valid for the resource server).

      • The nested act claim:

        "act":
{
  "sub":"https://mcp-server1.example.com",
  {
    "sub":"https://agent2.example.com",
    "act":
    {
      "sub":"https://agent1.example.com",
    }
  }
}

This demonstrates a perfect call stack. Every actor has its own unique token that identifies who it was called by in each stage of the flow. This separates an agent’s activity from a human’s, and ensures every action is accurately accounted for.
