Web Authentication Policy API

The API described here can be used for reading and creating web authentication policies. Currently there is no API for SSH and VPN authentication policies.

Basic rules for creating policies

When using the API to create authentication policies, it’s important to keep in mind the following information about authentication policies in PingID:

You can create as many policies as you like, however, as soon as PingID finds a policy that matches the application and user, it will use that policy and not continue to the other policies in the list.
Policies are processed in the order in which they appear in the list.
In addition to the policies that you create, there is always a default policy that applies to all applications and users. If the combination of user and application does not match any of the policies that you created, the default authentication policy is applied.
For each policy, you can define the authentication methods that are allowed. These cannot include any methods that were disallowed on the PingID Configuration page.
Within each policy, you also specify specific rules that should apply for different scenarios, for example, accessing applications from specific countries or accessing applications when a successful authentication was recently performed.
The logic that applies to the processing of policies applies also to the processing of rules within a policy: rules are processed in the order in which they appear in the list, and PingID stops processing rules once it finds a rule that applies to the current situation.

API-specific issues when creating policies

In addition to the general rules that apply to policies, keep the following points in mind when creating policies with the API:

Using the API, policies are written as a set, not individually. So if you are adding policies to an account with existing policies, you must first read the existing policies with readbulkauthenticationpolicy, process the returned JSON object, and then write the entire set of policies with createbulkauthenticationpolicy.
In the UI, policies are processed in the order in which they appear in the list. To set the order of policies when using the API, you must set the priority field, whose value must be an integer. The number represents the place in the list, so if you assign a priority of 1, this will be the first policy processed. The highest value for priority must be assigned to the default policy.
The same approach is used for processing rules within a policy. Set the priority field for each rule. The rule with the value of 1 will be processed first.

Structure of requests

Like the other PingID APIs, the Policy API uses JSON Web Tokens (JWTs). For information on the general steps for creating the JWTs, see the PingID API overview.

The request token header to use is the same token header used for all other PingID API requests.

The request token payload uses the same structure as the other PingID API requests. The reqHeader object in the payload is identical to that used for all other API requests.

The content to include in the reqBody object of the payload is described in the remaining sections of this page.

Reading existing policies (readbulkauthenticationpolicy)

The URL to use to read the existing policies is:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/readbulkauthenticationpolicy/do

The request payload should consist of the following objects

{
	"reqHeader": { ... },
	"reqBody": {
	  "authenticationSource": "WEB"
	}
}

The content of reqHeader is similar to that used in all other requests in the PingID API. For details, see the PingID API overview.

The reqBody object consists of a single field, authenticationSource, whose value must be "WEB".

Below is a sample response to a readbulkauthenticationpolicy request:

{
	"authenticationPolicies":
	[
		{
			"policyName": "My First Policy"
			"priority": 1
			"targets":
			{
				"APPLICATION":["com.pingidentity.webportal.mfa","com.pingidentity.cdp.managedevices"],
				"GROUP":["My Group"]
			}
			"showAuthenticationScreen": true
			"authenticationMethodsPolicy": null
			"accessingCountryPolicy": null
			"companyNetworkOriginatedPolicy": null
			"knownDevicePolicy": null
			"mobileOSPolicy": null
			"newAccessingDevicePolicy": null
			"userInCompanyOfficeAndKnownDevicePolicy": null
			"recentAuthenticationFromCompanyNetwork": null
			"geoVelocityPolicy": null
			"anonymousNetworkPolicy": null
			"userRiskBehaviorPolicy": null
			"ipReputationPolicy": null
			"riskLevelPolicy": null
			"defaultPolicyAction": "AUTHENTICATE"
		},
		{
			"priority": 2
			"targets": {}
 			"showAuthenticationScreen": true
			"policyName": "Default Policy"
			"authenticationMethodsPolicy": null
			"accessingCountryPolicy": null
			"companyNetworkOriginatedPolicy": null
			"knownDevicePolicy": null
			"mobileOSPolicy": null
			"newAccessingDevicePolicy": null
			"notInWorkingDaysPolicy": null
			"userInCompanyOfficeAndKnownDevicePolicy": null
			"recentAuthenticationFromCompanyNetwork": null
			"geoVelocityPolicy": null
			"anonymousNetworkPolicy": null
			"userRiskBehaviorPolicy": null
			"ipReputationPolicy": null
			"riskLevelPolicy": null
			"rateLimitPushNotificationPolicy": null
			"defaultPolicyAction": "APPROVE"
		}
	],
	"errorId": 200,
	"errorMsg": "ok",
	"policyVersion": 8,
	"uniqueMsgId": "webs_GCzFltyFl7g_XjoOII1hk19eTOm_XdDeLE9_M7bv2kw"
}

Points to note about the body of the response:

The general response information (errorId, errorMsg, uniqueMsgId) is the same as that returned for other methods in the PingID API.
authenticationPolicies is an array of policy objects.
Each policy returned contains all of the possible rules that can be defined, but if the rule is not used in the policy, its value is null.
The second policy returned in this example is the default policy. You can recognize it as the default policy by the fact that its [targets] (#targetSection) object is empty.
The collection of policies is assigned a version number, and this is reflected in the read-only field policyVersion. Each time the existing policies are modified, the version number is incremented. This is used to prevent policies from being modified simultaneously by multiple administrators. If the version number sent in a request does not match the current version, the error 10610 is returned. If this error is received, you must use readbulkauthenticationpolicy to reread the policies, and then make the relevant changes to the policies and call createbulkauthenticationpolicy again with the updated policies.

Creating a set of policies (createbulkauthenticationpolicy)

The createbulkauthenticationpolicy method is used to create a set of policies for a PingID account.

In requests to create a set of policies, the reqBody object must contain the following two elements:

authenticationSource (String) - must be set to "WEB"
authenticationPolicies - an array of policy objects

Below is a very simple example that creates two policies, the second being the default policy.

{
	"reqHeader": { ... },
	"reqBody": {
	   "authenticationSource": "WEB",
	   "authenticationPolicies":
	   [
	       {
	           "policyName": "My First Policy",
	           "targets":
	               {
	                "APPLICATION":["com.pingidentity.webportal.mfa","com.pingidentity.cdp.managedevices"],
	                "GROUP":["My Group"]
	               },
	           "defaultPolicyAction": "AUTHENTICATE",
	           "showAuthenticationScreen": true,
	           "priority": 1
	       },
	       {
	           "defaultPolicyAction": "AUTHENTICATE",
	           "showAuthenticationScreen": true,
	           "priority": 2
	       }
	   ]
	}
}

Points to note about this simple example:

The content of reqHeader is similar to that used in all other requests in the PingID API. For details, see the PingID API overview.
authenticationPolicies is an array of policy objects.
The policies in the example do not use any of the rules that are available for policies.
The policies do not specify a list of allowed methods, which means that they permit all of the PingID authentication methods that are allowed by the PingID configuration.
The second policy in the array is the default policy. You can recognize it as the default policy by the fact that it does not include a targets object.
The default policy does not include the policyName field. If you specify a name, it will be ignored.

The table below lists the mandatory and optional fields contained in policy objects.

Parameter DataType Description

Parameter	DataType	Description
policyName	String	The name to use for the policy. Cannot exceed 230 characters. Mandatory for ordinary policies, but this field should not be used for the default policy, since it is always called "Default Policy". You cannot use the same name for two policies (field is not case-sensitive), and you cannot use the name "Default Policy" for a non-default policy.
targets	Object	Used to specify the groups and applications that the policy should apply to. Not used for the Default Policy. Mandatory for all other policies. For more information, see Targets.
priority	int	The priority of the policy in terms of processing. Mandatory. The number represents the place in the policy list, so if you assign a priority of 1, this will be the first policy processed. The values assigned for policy priorities must not skip any numbers. The highest value for `priority` must be assigned to the default policy.
showAuthenticationScreen	Boolean	Optional. For each authentication policy that you define, you can specify whether or not you want to display the authentication approval screen when a user is automatically approved without a challenge. When defining policies with the API, this is done with the `showAuthenticationScreen` parameter. If you leave this parameter out, the approval screen is shown. Set the parameter to false if you do not want the approval screen to be shown.
defaultPolicyAction	String	The action to take if none of the criteria of the rules included in the policy are met. The possible values are Approve, Deny, Authenticate, or a collection of specific authentication actions. Authenticate means that any of the allowed methods can be used. If you want to allow only a subset of the allowed methods, you can specify the methods to allow, for example, `"defaultPolicyAction": "otp_only,swipe_only"`. For more information on the actions that you can specify, see Actions.

policyName

String

The name to use for the policy. Cannot exceed 230 characters. Mandatory for ordinary policies, but this field should not be used for the default policy, since it is always called "Default Policy". You cannot use the same name for two policies (field is not case-sensitive), and you cannot use the name "Default Policy" for a non-default policy.

targets

Object

Used to specify the groups and applications that the policy should apply to. Not used for the Default Policy. Mandatory for all other policies. For more information, see Targets.

priority

int

The priority of the policy in terms of processing. Mandatory. The number represents the place in the policy list, so if you assign a priority of 1, this will be the first policy processed. The values assigned for policy priorities must not skip any numbers. The highest value for priority must be assigned to the default policy.

showAuthenticationScreen

Boolean

Optional. For each authentication policy that you define, you can specify whether or not you want to display the authentication approval screen when a user is automatically approved without a challenge. When defining policies with the API, this is done with the showAuthenticationScreen parameter. If you leave this parameter out, the approval screen is shown. Set the parameter to false if you do not want the approval screen to be shown.

defaultPolicyAction

String

The action to take if none of the criteria of the rules included in the policy are met. The possible values are Approve, Deny, Authenticate, or a collection of specific authentication actions. Authenticate means that any of the allowed methods can be used. If you want to allow only a subset of the allowed methods, you can specify the methods to allow, for example, "defaultPolicyAction": "otp_only,swipe_only". For more information on the actions that you can specify, see Actions.

Targets

Every policy, other than the "Default Policy", must specify the users and applications that it should apply to.

When using the API for creating policies, this is done with the targets object.

The targets object consists of two arrays, one named APPLICATION and one named GROUP, for example:

"targets":
	{
	   "APPLICATION":["com.pingidentity.webportal.mfa","com.pingidentity.cdp.managedevices"],
	   "GROUP":["My Group"]
	}

Note that the array names must be upper-case.

The policy is applied only if the user belongs to one of the groups specified and is trying to access one of the applications specified.

The targets object is mandatory for all policies other than the default policy. Because the default policy applies to all users and all applications, this object should not be included for the default policy. In fact, the absence of the targets object is the criterion used to recognize the default policy.

The APPLICATION array should consist of one or more application IDs.

The following applications have hard-coded application IDs:

Device Management: com.pingidentity.cdp.managedevices
Password Reset: com.pingidentity.pf.passwordreset
Admin Portal: com.pingidentity.webportal.mfa
AD FS: adfs.com.pingidentity
Azure AD Integration: 7e732f70-c0a9-4908-98d2-46fd11b2c1b3
Mac Login: com.pingidentity.mac.login

Windows Login: com.pingidentity.win.login

You can use this application ID only if the ENFORCE POLICY FOR WINDOWS LOGIN setting is enabled at the configuration level. This setting can only be enabled in the user interface - there is no API equivalent.

Windows Remote Desktop: com.pingidentity.win.remote

If you want the policy to apply to all applications, you must include APPLICATION as an empty array: "APPLICATION":[]

The application names in the APPLICATION array are case-sensitive.

No validation is carried out on the application IDs to verify that the application ID exists.

If you want to add an application to the PingFederate application list, use addapplication from the PingID Application Policy Management API for PingFederate.

The GROUP array should consist of one or more group names. Note that any group name can be used. If the name specified does not yet exist in the PingOne list of groups, it will be added automatically to the list if the request completes successfully.

If you want the policy to apply to all groups, you must include GROUP as an empty array: "GROUP":[]

The names of groups in the GROUP array are case-sensitive. So, "group1" and "Group1" would be considered two different groups.

Actions

Listed below are the action names that can be used for the default action of a policy or for the action to use for a specific rule within a policy.

The default action for a policy is set with defaultPolicyAction. The action for a rule is set with policyAction.

APPROVE
DENY
AUTHENTICATE
SMS
VOICE
YUBIKEY
EMAIL
DESKTOP
OTP_ONLY (used for one-time passcode)
SWIPE_ONLY
FINGERPRINT_ONLY (used for Mobile App Biometrics)
OATHTOKEN
AUTHENTICATOR_APP
NUMBER_MATCHING
WEBAUTHN (used for Security Key)
WEBAUTHN_PLATFORM (used for FIDO2 Biometrics)

Use AUTHENTICATE when you want the action to be any of the allowed methods for the policy. If you only want to allow a subset of the methods allowed for the policy, use a comma-separated list of the specific actions you want to allow, for example:

{
     "authenticationSource": "WEB",
     "authenticationPolicies":
     [
     	{
     	"defaultPolicyAction": "OTP_ONLY, SWIPE_ONLY",
       "showAuthenticationScreen": false,
       "priority": 1
       }
     ]
 }

The following actions cannot be used in conjunction with other actions: APPROVE, DENY, AUTHENTICATE.

You cannot specify an action that is disallowed at the level of the PingID configuration, or an action that was not included in the "allowed methods" for the policy.

Certain actions cannot be used for specific rules. For example, APPROVE cannot be used with the accessing from countries rule.

Allowed Methods

For each policy, you can specify the specific authentication methods that you want to allow for the policy, or you can specify that you want to allow all of the authentication methods that PingID supports.

In the UI for defining policies, the Allowed Methods section is separate from the Rules section. However, when defining policies with the API, the allowed methods are considered a type of rule. So as is the case for the specific rules, you must specify a priority value for the allowed methods "rule". The allowed methods are processed before any of the specific rules, so the value for the priority field must be 1.

The allowed methods that you can specify are limited by the methods that were defined in the Configuration for your PingID account. For example, "EMAIL" cannot be specified as an allowed method if it is disabled at the configuration level.

The following example shows a policy list consisting of two policies, one of which is the default policy. Within the non-default policy you can see the structure of the authenticationMethodsPolicy ` object. The object consists of the `priority field and an array of allowed methods called authenticationMethods. In this example, the allowed authentication methods are SMS and EMAIL.

Note also that while the allowed methods are contained within the definition of a policy, the field itself, `authenticationMethodsPolicy `, still contains the word "policy".

{
   "authenticationSource": "WEB",
   "authenticationPolicies":
   [
       {
           "policyName": "my first policy",
           "targets":
               {"APPLICATION":["com.pingidentity.webportal.mfa"]
               ,"GROUP":[]
               },
           "authenticationMethodsPolicy": {
               "authenticationMethods":["SMS","EMAIL"],
               "priority": 1,
           },
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 1
       },
       {
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 2
       }
   ]
}

Parameter	DataType	Description
authenticationMethods	Array	Mandatory. Contents of the array should be the methods you want to allow from this list: SWIPE, FINGERPRINT, SMS, VOICE, YUBIKEY, EMAIL, OTP, DESKTOP, RESCUE, WEBAUTHN, WEBAUTHN_PLATFORM, OATHTOKEN, AUTHENTICATOR_APP, NUMBER_MATCHING. The method names must be upper case.
priority	int	Mandatory, must be set to 1.

Parameter

DataType

Description

authenticationMethods

Array

Mandatory. Contents of the array should be the methods you want to allow from this list: SWIPE, FINGERPRINT, SMS, VOICE, YUBIKEY, EMAIL, OTP, DESKTOP, RESCUE, WEBAUTHN, WEBAUTHN_PLATFORM, OATHTOKEN, AUTHENTICATOR_APP, NUMBER_MATCHING. The method names must be upper case.

priority

int

Mandatory, must be set to 1.

If you want to allow all the current authentication methods as well as any that might be supported in the future (the equivalent of the "All Methods" option in the user interface), do not include the authenticationMethodsPolicy object in the request.

Accessing device and authenticating device

In the specific rules that you can include in policies, some of the parameters relate to the device on which the user is trying to access an application. For example, the accessing from countries rule checks the IP of the device you are using in order to check what country you are in.

There are other parameters that refer to the device that the user uses for authenticating. For example, the mobile OS version rule lets you specify a minimum required OS version on the device on which the PingID mobile app is installed.

To prevent any confusion, in the descriptions of the various rules and their parameters these device types are referred to as "the accessing device" and "the authenticating device".

Rules

In addition to defining the groups and applications that a policy applies to, and the allowed authentication methods, you can use the individual rules that PingID provides to allow you to specify actions for specific scenarios, such as users trying to access an application from another country.

Since the various rules address different scenarios, each rule has its own set of parameters.

For some of the rules, the list of actions you can specify is limited to a subset of the available actions.

Since the order in which rules are processed is significant, you must specify the priority for each rule that you define.

Note that while the individual rules are contained within the definition of a policy, the names of the objects that represent the different rules all contain the word "policy", for example, accessingCountryPolicy.

Parameters relevant for all rules

Parameter DataType Description

Parameter	DataType	Description
priority	int	Mandatory. Determines the order in which the rules are processed. A lower number is processed before a higher number. If you have specified allowed methods for the policy with the `authenticationMethodsPolicy` object, then `authenticationMethodsPolicy` has to be assigned the priority 1, which means that the priorities of the individual rules should start at 2. If you are not using `authenticationMethodsPolicy` in the policy, then the values of `priority` for rules should start at 1. Note that the priority values assigned to rules cannot skip numbers.
policyAction	String	One or more of the actions listed in the Actions section.

priority

int

Mandatory. Determines the order in which the rules are processed. A lower number is processed before a higher number. If you have specified allowed methods for the policy with the authenticationMethodsPolicy object, then authenticationMethodsPolicy has to be assigned the priority 1, which means that the priorities of the individual rules should start at 2. If you are not using authenticationMethodsPolicy in the policy, then the values of priority for rules should start at 1. Note that the priority values assigned to rules cannot skip numbers.

policyAction

String

One or more of the actions listed in the Actions section.

Mobile OS version rule

You can use the mobile OS version rule to specify an action to take if the operating system version of the authenticating device is above or below a certain version. For example, you might want to define stricter authentication requirements for older, more vulnerable versions of an operating system.

This rule is relevant only if the policy allows at least one of the mobile device authentication methods, such as the PingID mobile app.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy based on OS version",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "mobileOSPolicy": {
                "androidCondition":{
                    "operator": "LOWER",
                    "version": "4.1"
                },
                 "iOsCondition":{
                    "operator": "LOWER",
                    "version": "8.1"
                },
                "policyAction": "DENY",
                "priority": 1
            },
            "defaultPolicyAction": "EMAIL",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Conditions for Android are set in the androidCondition object, and conditions for iOS are set in the iOsCondition object. You can omit androidCondition if you don’t want to set a condition for Android devices, and you can omit iOsCondition if you don’t want to set a condition for iOS devices.

Within each condition, you must provide a value for the operator and version parameters.

Parameter	DataType	Description
operator	String	Mandatory. Possible values: LOWER, GREATER. Must be upper case.
version	String	Mandatory. The operating system version, for example, "8.1". Note that for this parameter, you can only use one of the values that are listed in the UI for defining the mobile OS rule. You can also set the value of version to ALL if you want to include every version of the OS that was released.

Parameter

DataType

Description

operator

String

Mandatory. Possible values: LOWER, GREATER. Must be upper case.

version

String

Mandatory. The operating system version, for example, "8.1". Note that for this parameter, you can only use one of the values that are listed in the UI for defining the mobile OS rule. You can also set the value of version to ALL if you want to include every version of the OS that was released.

Accessing from countries rule

This rule allows you to specify the specific action to take when a user attempts to access an application from one or more specific countries.

The following sample demonstrates the use of this rule.

{
   "authenticationSource": "WEB",
   "authenticationPolicies":
   [
       {
           "policyName": "my first policy",
           "targets":
               {"APPLICATION":["com.pingidentity.webportal.mfa"]
               ,"GROUP":[]
               },
           "accessingCountryPolicy": {
               "countryCode": ["GB", "CH"],
               "policyAction": "DENY",
               "priority": 1
           },
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 1
       },
       {
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 2
       }
   ]
}

Note that for this rule, policyAction cannot take the value APPROVE.

Rule-specific parameters

Parameter	DataType	Description
countryCode	Array	Mandatory. Collection of country codes for the countries where you want the rule to apply

Parameter

DataType

Description

countryCode

Array

Mandatory. Collection of country codes for the countries where you want the rule to apply

List of country codes

Code	Country
Afghanistan	AF
Åland Islands	AX
Albania	AL
Algeria	DZ
American Samoa	AS
Andorra	AD
Angola	AO
Anguilla	AI
Antarctica	AQ
Antigua and Barbuda	AG
Argentina	AR
Armenia	AM
Aruba	AW
Australia	AU
Austria	AT
Azerbaijan	AZ
Bahamas	BS
Bahrain	BH
Bangladesh	BD
Barbados	BB
Belarus	BY
Belgium	BE
Belize	BZ
Benin	BJ
Bermuda	BM
Bhutan	BT
Bolivia	BO
Bosnia and Herzegovina	BA
Botswana	BW
Brazil	BR
British Antarctic Territory	BQ
British Indian Ocean Territory	IO
British Virgin Islands	VG
Brunei	BN
Bulgaria	BG
Burkina Faso	BF
Burundi	BI
Cambodia	KH
Cameroon	CM
Canada	CA
Cape Verde	CV
Cayman Islands	KY
Central African Republic	CF
Chad	TD
Chile	CL
China	CN
Christmas Island	CX
Cocos [Keeling] Islands	CC
Colombia	CO
Comoros	KM
Congo - Brazzaville	CG
Congo - Kinshasa	CD
Cook Islands	CK
Costa Rica	CR
Côte d’Ivoire	CI
Croatia	HR
Cuba	CU
Cyprus	CY
Czech Republic	CZ
Denmark	DK
Djibouti	DJ
Dominica	DM
Dominican Republic	DO
Ecuador	EC
Egypt	EG
El Salvador	SV
Equatorial Guinea	GQ
Eritrea	ER
Estonia	EE
Ethiopia	ET
Falkland Islands	FK
Faroe Islands	FO
Fiji	FJ
Finland	FI
France	FR
French Guiana	GF
French Polynesia	PF
French Southern Territories	TF
Gabon	GA
Gambia	GM
Georgia	GE
Germany	DE
Ghana	GH
Gibraltar	GI
Greece	GR
Greenland	GL
Grenada	GD
Guadeloupe	GP
Guam	GU
Guatemala	GT
Guernsey	GG
Guinea-Bissau	GW
Guinea	GN
Guyana	GY
Haiti	HT
Honduras	HN
Hong Kong SAR China	HK
Hungary	HU
Iceland	IS
India	IN
Indonesia	ID
Iran	IR
Iraq	IQ
Ireland	IE
Isle of Man	IM
Israel	IL
Italy	IT
Jamaica	JM
Japan	JP
Jersey	JE
Jordan	JO
Kazakhstan	KZ
Kenya	KE
Kiribati	KI
Kuwait	KW
Kyrgyzstan	KG
Laos	LA
Latvia	LV
Lebanon	LB
Lesotho	LS
Liberia	LR
Libya	LY
Liechtenstein	LI
Lithuania	LT
Luxembourg	LU
Macau SAR China	MO
Macedonia	MK
Madagascar	MG
Malawi	MW
Malaysia	MY
Maldives	MV
Mali	ML
Malta	MT
Marshall Islands	MH
Martinique	MQ
Mauritania	MR
Mauritius	MU
Mayotte	YT
Mexico	MX
Micronesia	FM
Moldova	MD
Monaco	MC
Mongolia	MN
Montenegro	ME
Montserrat	MS
Morocco	MA
Mozambique	MZ
Myanmar [Burma]	MM
Namibia	NA
Nauru	NR
Nepal	NP
Netherlands	NL
New Caledonia	NC
New Zealand	NZ
Nicaragua	NI
Niger	NE
Nigeria	NG
Niue	NU
Norfolk Island	NF
North Korea	KP
Northern Mariana Islands	MP
Norway	NO
Oman	OM
Pakistan	PK
Palau	PW
Palestinian Territories	PS
Panama	PA
Papua New Guinea	PG
Paraguay	PY
Peru	PE
Philippines	PH
Pitcairn Islands	PN
Poland	PL
Portugal	PT
Puerto Rico	PR
Qatar	QA
Réunion	RE
Romania	RO
Russia	RU
Rwanda	RW
Saint Barthélemy	BL
Saint Helena	SH
Saint Kitts and Nevis	KN
Saint Lucia	LC
Saint Martin	MF
Saint Pierre and Miquelon	PM
Saint Vincent and the Grenadines	VC
Samoa	WS
San Marino	SM
São Tomé and Príncipe	ST
Saudi Arabia	SA
Senegal	SN
Serbia	RS
Seychelles	SC
Sierra Leone	SL
Singapore	SG
Slovakia	SK
Slovenia	SI
Solomon Islands	SB
Somalia	SO
South Africa	ZA
South Georgia and the South Sandwich Islands	GS
South Korea	KR
Spain	ES
Sri Lanka	LK
Sudan	SD
Suriname	SR
Svalbard and Jan Mayen	SJ
Swaziland	SZ
Sweden	SE
Switzerland	CH
Syria	SY
Taiwan	TW
Tajikistan	TJ
Tanzania	TZ
Thailand	TH
Timor-Leste	TL
Togo	TG
Tokelau	TK
Tonga	TO
Trinidad and Tobago	TT
Tunisia	TN
Turkey	TR
Turkmenistan	TM
Turks and Caicos Islands	TC
Tuvalu	TV
U.S. Minor Outlying Islands	UM
U.S. Virgin Islands	VI
Uganda	UG
Ukraine	UA
United Arab Emirates	AE
United Kingdom	GB
United States	US
Uruguay	UY
Uzbekistan	UZ
Vanuatu	VU
Vatican City	VA
Venezuela	VE
Vietnam	VN
Wallis and Futuna	WF
Yemen	YE
Zambia	ZM
Zimbabwe	ZW

Code

Country

Afghanistan

Åland Islands

Albania

Algeria

American Samoa

Andorra

Angola

Anguilla

Antarctica

Antigua and Barbuda

Argentina

Armenia

Aruba

Australia

Austria

Azerbaijan

Bahamas

Bahrain

Bangladesh

Barbados

Belarus

Belgium

Belize

Benin

Bermuda

Bhutan

Bolivia

Bosnia and Herzegovina

Botswana

Brazil

British Antarctic Territory

British Indian Ocean Territory

British Virgin Islands

Brunei

Bulgaria

Burkina Faso

Burundi

Cambodia

Cameroon

Canada

Cape Verde

Cayman Islands

Central African Republic

Chad

Chile

China

Christmas Island

Cocos [Keeling] Islands

Colombia

Comoros

Congo - Brazzaville

Congo - Kinshasa

Cook Islands

Costa Rica

Côte d’Ivoire

Croatia

Cuba

Cyprus

Czech Republic

Denmark

Djibouti

Dominica

Dominican Republic

Ecuador

Egypt

El Salvador

Equatorial Guinea

Eritrea

Estonia

Ethiopia

Falkland Islands

Faroe Islands

Fiji

Finland

France

French Guiana

French Polynesia

French Southern Territories

Gabon

Gambia

Georgia

Germany

Ghana

Gibraltar

Greece

Greenland

Grenada

Guadeloupe

Guam

Guatemala

Guernsey

Guinea-Bissau

Guinea

Guyana

Haiti

Honduras

Hong Kong SAR China

Hungary

Iceland

India

Indonesia

Iran

Iraq

Ireland

Isle of Man

Israel

Italy

Jamaica

Japan

Jersey

Jordan

Kazakhstan

Kenya

Kiribati

Kuwait

Kyrgyzstan

Laos

Latvia

Lebanon

Lesotho

Liberia

Libya

Liechtenstein

Lithuania

Luxembourg

Macau SAR China

Macedonia

Madagascar

Malawi

Malaysia

Maldives

Mali

Malta

Marshall Islands

Martinique

Mauritania

Mauritius

Mayotte

Mexico

Micronesia

Moldova

Monaco

Mongolia

Montenegro

Montserrat

Morocco

Mozambique

Myanmar [Burma]

Namibia

Nauru

Nepal

Netherlands

New Caledonia

New Zealand

Nicaragua

Niger

Nigeria

Niue

Norfolk Island

North Korea

Northern Mariana Islands

Norway

Oman

Pakistan

Palau

Palestinian Territories

Panama

Papua New Guinea

Paraguay

Peru

Philippines

Pitcairn Islands

Poland

Portugal

Puerto Rico

Qatar

Réunion

Romania

Russia

Rwanda

Saint Barthélemy

Saint Helena

Saint Kitts and Nevis

Saint Lucia

Saint Martin

Saint Pierre and Miquelon

Saint Vincent and the Grenadines

Samoa

San Marino

São Tomé and Príncipe

Saudi Arabia

Senegal

Serbia

Seychelles

Sierra Leone

Singapore

Slovakia

Slovenia

Solomon Islands

Somalia

South Africa

South Georgia and the South Sandwich Islands

South Korea

Spain

Sri Lanka

Sudan

Suriname

Svalbard and Jan Mayen

Swaziland

Sweden

Switzerland

Syria

Taiwan

Tajikistan

Tanzania

Thailand

Timor-Leste

Togo

Tokelau

Tonga

Trinidad and Tobago

Tunisia

Turkey

Turkmenistan

Turks and Caicos Islands

Tuvalu

U.S. Minor Outlying Islands

U.S. Virgin Islands

Uganda

Ukraine

United Arab Emirates

United Kingdom

United States

Uruguay

Uzbekistan

Vanuatu

Vatican City

Venezuela

Vietnam

Wallis and Futuna

Yemen

Zambia

Zimbabwe

Recent authentication rule

You can use the recent authentication rule to specify the action that should be taken if the last successful authentication request from the user’s device occurred within a given time period, such as within the last 30 minutes, and the authentication method used was one of the methods permitted for the application the user is trying to access now.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy for recent authentication",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "knownDevicePolicy": {
                "timeUnit": "MINUTES",
                "num": 30,
                "policyAction": "APPROVE",
                "priority": 1
            },
            "defaultPolicyAction": "EMAIL",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Parameter DataType Description

Parameter	DataType	Description
timeUnit	String	Mandatory. The time unit for the `num` parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.
num	int	Mandatory. The amount of time (using the units specified with `timeUnit`). Cannot exceed 90 days.

timeUnit

String

Mandatory. The time unit for the num parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.

num

int

Mandatory. The amount of time (using the units specified with timeUnit). Cannot exceed 90 days.

Accessing from company network rule

You can use this rule to specify the action that should be taken when a user attempts to access an application from within the company network. You must specify the IP addresses that define the company network. In addition, you can specify that the user must be within a geographic region that represents a company office.

While most rules relate to either the accessing device or the authenticating device, if you use the geofence option for this rule, the rule takes into account the IP address of the accessing device and the geographic location of the authenticating device.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy for company network",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "companyNetworkOriginatedPolicy": {
                "accessingDeviceIPRange": ["1.1.1.1/24", "1.1.1.1/12"],
                "policyAction": "APPROVE",
                "useGeoFence": true,
                "priority": 1
            },
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Parameter	DataType	Description
accessingDeviceIPRange	Array	Mandatory. One or more ranges of IP addresses expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"]. The user must be attempting to access the application from one of the IP addresses in the specified range.

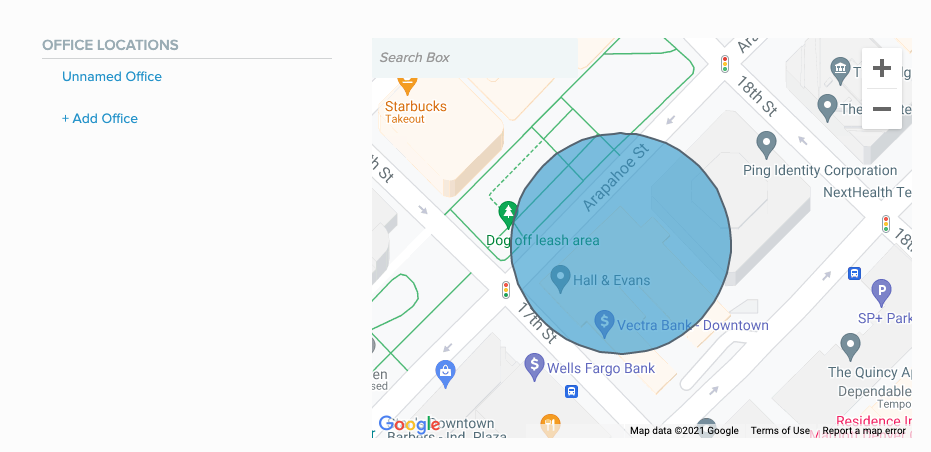

useGeoFence	Boolean	Optional. Indication of whether the rule requires that the user be within a specific geographical area that represents a company office. Note that this parameter is only a boolean value. The actual geographical region must be defined in the PingID admin console. There is no API equivalent for defining the region. The geofence option uses the location of the authenticating device - so this option is relevant only if the policy allows at least one of the mobile device authentication methods, such as the PingID mobile app.

Parameter

DataType

Description

accessingDeviceIPRange

Array

Mandatory. One or more ranges of IP addresses expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"]. The user must be attempting to access the application from one of the IP addresses in the specified range.

useGeoFence

Boolean

Optional. Indication of whether the rule requires that the user be within a specific geographical area that represents a company office. Note that this parameter is only a boolean value. The actual geographical region must be defined in the PingID admin console. There is no API equivalent for defining the region. The geofence option uses the location of the authenticating device - so this option is relevant only if the policy allows at least one of the mobile device authentication methods, such as the PingID mobile app.

Recent authentication from company network rule

You can use the recent authentication from company network rule to specify the action that should be taken when the following conditions are met:

The last successful authentication request from the user’s device occurred within a given time period, such as within the last 30 minutes
The request was made from within the company network
The authentication method used was one of the methods permitted for the application the user is trying to access now

For example, if the previous request was made recently from within the company network, you might want to define less strict authentication requirements.

You must specify the IP addresses that define the company network. In addition, you can specify that the user must be within a geographic region that represents a company office.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy for recent authentication from company network",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "recentAuthenticationFromCompanyNetwork": {
                "num": 5,
                "timeUnit": "DAYS",
                "accessingDeviceIPRange": ["1.1.1.1/24"],
                "useGeoFence": true,
                "policyAction": "APPROVE",
                "priority": 1
            },
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Parameter DataType Description

Parameter	DataType	Description
timeUnit	String	Mandatory. The time unit for the `num` parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.
num	int	Mandatory. The amount of time (using the units specified with `timeUnit`). Cannot exceed 90 days.
accessingDeviceIPRange	Array	Mandatory. One or more ranges of IP addresses expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"]. The user must be attempting to access the application from one of the IP addresses in the specified range.
useGeoFence	Boolean	Optional. Indication of whether the rule requires that the user be within a specific geographical area that represents a company office. Note that this parameter is only a boolean value. The actual geographical region must be defined in the PingID admin console. There is no API equivalent for defining the region. The geofence option uses the location of the authenticating device - so this option is relevant only if the policy allows at least one of the mobile device authentication methods, such as the PingID mobile app.

timeUnit

String

Mandatory. The time unit for the num parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.

num

int

Mandatory. The amount of time (using the units specified with timeUnit). Cannot exceed 90 days.

accessingDeviceIPRange

Array

useGeoFence

Boolean

Recent authentication from office rule

You can use the recent authentication from office rule to specify the action that should be taken when the following conditions are met:

The last successful authentication request from the user’s device occurred within a given time period, such as within the last 30 minutes
The request was made from within an office location
The authentication method used was one of the methods permitted for the application the user is trying to access now

For example, if the previous request was made recently at an office location, you might want to define less strict authentication requirements.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Recent authentication from office policy",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "userInCompanyOfficeAndKnownDevicePolicy": {
                "num": 5,
                "timeUnit": "DAYS",
                "policyAction": "APPROVE",
                "priority": 1
            },
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Parameter DataType Description

Parameter	DataType	Description
timeUnit	String	Mandatory. The time unit for the `num` parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.
num	int	Mandatory. The amount of time (using the units specified with `timeUnit`). Cannot exceed 90 days.

timeUnit

String

Mandatory. The time unit for the num parameter. Possible values: MINUTES, HOURS, DAYS. Must be upper case.

num

int

Mandatory. The amount of time (using the units specified with timeUnit). Cannot exceed 90 days.

This rule requires that a geographical region be defined for the office. The geographical region for the office must be defined in the PingID admin console. There is no API equivalent for defining the region.

Note that this rule uses the location of the authenticating device - so this option is relevant only if the policy allows at least one of the mobile device authentication methods, such as the PingID mobile app.

Authenticating from new device rule

Use the authenticating from new device rule to specify the action to be taken when a user tries to access an application from a new device for the first time. (This refers to the accessing device, not the authenticating device.)

You cannot use APPROVE or DENY as the value of policyAction for this rule.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy for initial access",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "newAccessingDevicePolicy": {
                "policyAction": "AUTHENTICATE",
                "priority": 1
            },
            "defaultPolicyAction": "APPROVE",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Geovelocity anomaly rule

You can use the geovelocity anomaly rule to specify an action that should be taken in situations where the distance between the current location of the user and the location of the last authentication is such that the user could not have traveled between the two locations in the time that elapsed.

For example, if a user signs on from New York, USA at 12:00 p.m. and then attempts to sign on from London, UK two hours later, a geovelocity anomaly is detected and a rule action, such as DENY, can be applied.

Note that the APPROVE action cannot be used for this rule.

The following sample demonstrates the use of this rule.

{
    "authenticationSource": "WEB",
    "authenticationPolicies":
    [
        {
            "policyName": "Policy for geovelocity anomalies",
            "targets":
                {"APPLICATION":["com.pingidentity.webportal.mfa"]
                ,"GROUP":["My Group"]
                },
            "geoVelocityPolicy": {
                "whitelistIpRanges": ["1.1.1.1/24", "1.1.1.2/24"],
                "policyAction": "DENY",
                "priority": 1
            },
            "defaultPolicyAction": "APPROVE",
            "showAuthenticationScreen": true,
            "priority": 1
        },
        {
            "defaultPolicyAction": "AUTHENTICATE",
            "showAuthenticationScreen": true,
            "priority": 2
        }
    ]
}

Rule-specific parameters

Parameter	DataType	Description
whitelistIpRanges	Array	Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, geovelocity anomalies are ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

Parameter

DataType

Description

whitelistIpRanges

Array

Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, geovelocity anomalies are ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

IP reputation rule

You can use the IP reputation rule to specify an authentication action based on the risk score associated with the IP address of the user’s accessing device.

Based on the IP address data that PingID collects and analyzes, it assigns one of three scores to the IP address of the accessing device - High, Medium, or Low.

High: The IP address is considered high risk and might have recently been involved in numerous malicious activities, such as DDoS attacks or spam activity.

Medium: The IP address is considered medium risk and might have been involved in malicious activities, such as DDoS attacks or spam activity.

Low: The IP address is considered low risk.

You can define a different authentication method for each risk group. This makes it possible to define more restrictive authentication for IP addresses in a higher risk group.

You have the option of defining a whitelist of IP addresses to which the rule should not be applied.

The following sample demonstrates the use of this rule.

Note that while the priority field is required for this rule like for all other rules, the second required field, policyAction is not used because actions are defined individually for each risk score.

{
  "authenticationSource": "WEB",
  "authenticationPolicies":
  [
      {
          "policyName": "Policy for IP reputation",
          "targets":
              {"APPLICATION":["com.pingidentity.webportal.mfa"]
              ,"GROUP":["My Group"]
              },
          "ipReputationPolicy": {
              "ipRiskPolicies":[
                  {
                      "riskType": "HIGH",
                      "policyAction": "DENY"
                  },
                  {
                      "riskType": "MEDIUM",
                      "policyAction": "AUTHENTICATE"
                  },
                  {
                      "riskType": "LOW",
                      "policyAction": "APPROVE"
                  }
              ],
              "whitelistIpRanges":["1.1.1.1/24"],
              "priority": 1
          },
          "defaultPolicyAction": "AUTHENTICATE",
          "showAuthenticationScreen": true,
          "priority": 1
      },
      {
          "defaultPolicyAction": "AUTHENTICATE",
          "showAuthenticationScreen": true,
          "priority": 2
      }
  ]
}

Rule-specific parameters

The actions for the different risk scores are defined in an array called ipRiskPolicies.

Parameter DataType Description

Parameter	DataType	Description
ipRiskPolicies	Array	Mandatory. Contains objects that consist of two mandatory fields, `riskType` (String) and `policyAction` (String). The possible values for riskType are LOW, MEDIUM, HIGH (must be upper-case). The value of `policyAction` can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk score, but at least one such object is required, for example, `"riskType": "HIGH","policyAction": "DENY"`. Note that you cannot use the APPROVE action for a `riskType` of HIGH.
whitelistIpRanges	Array	Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, the IP risk score is ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

ipRiskPolicies

Array

Mandatory. Contains objects that consist of two mandatory fields, riskType (String) and policyAction (String). The possible values for riskType are LOW, MEDIUM, HIGH (must be upper-case). The value of policyAction can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk score, but at least one such object is required, for example, "riskType": "HIGH","policyAction": "DENY". Note that you cannot use the APPROVE action for a riskType of HIGH.

whitelistIpRanges

Array

Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, the IP risk score is ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

Anonymous network detection rule

This rule can be used only if your organization has signed the required consent via a Ping Identity sales representative.

The anonymous network detection rule lets you define the action to take if PingID’s analysis of the IP address of a user’s accessing device indicates that the authentication attempt is originating from an anonymous network (for example, an unknown VPN, proxy, or anonymous communication tools such as TOR).

The following sample demonstrates the use of this rule.

{
  "authenticationSource": "WEB",
  "authenticationPolicies":
  [
      {
          "policyName": "Policy with anonymous network rule",
          "targets":
              {"APPLICATION":["com.pingidentity.webportal.mfa"]
              ,"GROUP":["My Group"]
              },
          "anonymousNetworkPolicy": {
              "whitelistIpRanges":["1.1.1.1/24"],
              "policyAction": "DENY",
              "priority": 1
          },
          "defaultPolicyAction": "APPROVE",
          "showAuthenticationScreen": true,
          "priority": 1
      },
      {
          "defaultPolicyAction": "AUTHENTICATE",
          "showAuthenticationScreen": true,
          "priority": 2
      }
  ]
}

Rule-specific parameters

Parameter	DataType	Description
whitelistIpRanges	Array	Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, the anonymous network criterion is ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

Parameter

DataType

Description

whitelistIpRanges

Array

Optional. This parameter can be used to specify IP ranges to which this rule should not apply, meaning that if the user is attempting to access the application from one of the IP addresses in these ranges, the anonymous network criterion is ignored. The ranges of addresses should be expressed in CIDR format, separated by commas, for example: ["1.1.1.1/24", "1.1.1.1/12"].

User risk behavior rule

This rule can be used only if your organization has signed the required consent via a Ping Identity sales representative.

The user risk behavior rule uses UEBA (User Entity Behavior Analytics) and machine learning to identify normal behavior patterns within your organization. User behavior varies between organizations, and can be learned through a variety of factors, such as the type of accessing device, the browser and operating system it is using, and the location from which a user signs on.

Ping’s machine learning engine learns the normal behavior patterns unique to your organization. It performs continuous training over time, to ensure that the machine learning model stays up-to-date with your company’s behavior patterns over time. It applies data intelligence to detect anomalies as they occur, in real-time, and categorizes them into low, medium, or high risk groups. The more serious the anomaly, the more likely it is that an authentication attempt is malicious. This rule allows you to specify an appropriate rule action for each risk group, such as defining a more restrictive authentication action for a higher risk group.

The user risk behavior rule is only applied if there is sufficient data to determine a risk score for the IP address of the accessing device.

The following sample demonstrates the use of this rule.

{
   "authenticationSource": "WEB",
   "authenticationPolicies":
   [
       {
           "policyName": "user risk behavior policy",
           "targets":
               {"APPLICATION":["com.pingidentity.webportal.mfa"]
               ,"GROUP":["My Group"]
               },
           "userRiskBehaviorPolicy": {
               "userRiskBehaviorInnerRiskPolicies":[
                   {
                       "userRiskBehaviorInnerRiskType": "HIGH",
                       "policyAction": "DENY"
                   },
                   {
                       "userRiskBehaviorInnerRiskType": "MEDIUM",
                       "policyAction": "AUTHENTICATE"
                   },
                   {
                       "userRiskBehaviorInnerRiskType": "LOW",
                       "policyAction": "APPROVE"
                   }
               ],
               "simulationMode": true,
               "priority": 1
           },
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 1
       },
       {
           "defaultPolicyAction": "AUTHENTICATE",
           "showAuthenticationScreen": true,
           "priority": 2
       }
   ]
}

Rule-specific parameters

The actions for the different risk levels are defined in an array called userRiskBehaviorInnerRiskPolicies.

Parameter DataType Description

Parameter	DataType	Description
userRiskBehaviorInnerRiskPolicies	Array	Mandatory. Contains objects that consist of two mandatory fields, `userRiskBehaviorInnerRiskType` (String) and `policyAction` (String). The possible values for `userRiskBehaviorInnerRiskType` are LOW, MEDIUM, HIGH (must be upper-case). The value of `policyAction` can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk level, but at least one such object is required, for example, `"userRiskBehaviorInnerRiskType": "MEDIUM","policyAction": "AUTHENTICATE"`. Note that you cannot use the APPROVE action for a `userRiskBehaviorInnerRiskType` of HIGH.
simulationMode	Boolean	Optional. You can try out this rule in Evaluation mode. This mode allows you to view the effect of applying the user risk behavior rule in the PingID activity log, before it is actually applied to your organization. The PingID activity report records the risk scores generated per event, and the main factors influencing the risk scores. You can use this information to adjust the rule actions you apply to ensure the right users gain access to your organization, and are not blocked. If you want to use Evaluation mode, include the `simulationMode` parameter with a value of True.

userRiskBehaviorInnerRiskPolicies

Array

Mandatory. Contains objects that consist of two mandatory fields, userRiskBehaviorInnerRiskType (String) and policyAction (String). The possible values for userRiskBehaviorInnerRiskType are LOW, MEDIUM, HIGH (must be upper-case). The value of policyAction can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk level, but at least one such object is required, for example, "userRiskBehaviorInnerRiskType": "MEDIUM","policyAction": "AUTHENTICATE". Note that you cannot use the APPROVE action for a userRiskBehaviorInnerRiskType of HIGH.

simulationMode

Boolean

Optional. You can try out this rule in Evaluation mode. This mode allows you to view the effect of applying the user risk behavior rule in the PingID activity log, before it is actually applied to your organization. The PingID activity report records the risk scores generated per event, and the main factors influencing the risk scores. You can use this information to adjust the rule actions you apply to ensure the right users gain access to your organization, and are not blocked. If you want to use Evaluation mode, include the simulationMode parameter with a value of True.

Risk level rule

The PingOne Risk service combines a number of predictors such as user risk behavior, IP reputation, and geovelocity anomaly to calculate a single risk score. If you have a license for PingOne Risk, you can include the risk level that it calculates in your PingID policies. For more information on PingOne Risk, see Introduction to PingOne Risk.

Before adding a risk level rule, make sure that you have provided a value for the Resource ID field in the definition of the PingID adapter for PingFederate. For more information, see Configuring a PingID Adapter instance. Version 2.11 or higher of the PingID adapter is required for this feature.

The following sample demonstrates the use of this rule.

{
"authenticationSource": "WEB",
"authenticationPolicies":
[
   {
       "policyName": "Policy that uses risk level rule",
       "targets":
           {"APPLICATION":["com.pingidentity.webportal.mfa"]
           ,"GROUP":["My Group"]
           },
       "riskLevelPolicy": {
           "innerRiskLevelPolicies":[
               {
                   "riskLevel": "HIGH",
                   "policyAction": "DENY"
               },
               {
                   "riskLevel": "MEDIUM",
                   "policyAction": "AUTHENTICATE"
               },
               {
                   "riskLevel": "LOW",
                   "policyAction": "APPROVE"
               }
           ],
           "priority": 1
       },
       "defaultPolicyAction": "APPROVE",
       "showAuthenticationScreen": true,
       "priority": 1
   },
   {
       "defaultPolicyAction": "AUTHENTICATE",
       "showAuthenticationScreen": true,
       "priority": 2
   }
   ]
}

Rule-specific parameters

The actions for the different risk scores are defined in an array called innerRiskLevelPolicies.

Parameter DataType Description

Parameter	DataType	Description
innerRiskLevelPolicies	Array	Mandatory. Contains objects that consist of two mandatory fields, `riskLevel` (String) and `policyAction` (String). The possible values for `riskLevel` are LOW, MEDIUM, HIGH (must be upper-case). The value of `policyAction` can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk score, but at least one such object is required, for example, `"riskLevel": "HIGH","policyAction": "DENY"`. Note that you cannot use the APPROVE action for a `riskLevel` of HIGH.

innerRiskLevelPolicies

Array

Mandatory. Contains objects that consist of two mandatory fields, riskLevel (String) and policyAction (String). The possible values for riskLevel are LOW, MEDIUM, HIGH (must be upper-case). The value of policyAction can be any of the actions listed in the Actions section. You can define up to three such objects, one for each risk score, but at least one such object is required, for example, "riskLevel": "HIGH","policyAction": "DENY". Note that you cannot use the APPROVE action for a riskLevel of HIGH.

Limit push notifications rule

Use this rule to reduce the likelihood of a user acknowledging a malicious push notification as part of an MFA fatigue attack by limiting the number of push notifications the user can deny or ignore within a given time period.

If the number of push notifications the user receives exceeds the limit defined, specify an action from the allowed methods or choose to deny the user access. This limit is applied to push notifications that the user ignores or denies.

You can define an array of up to three push notification limits (subrules), and specify up to three actions that are triggered sequentially as the user reaches each limit. Select increasingly restrictive actions as the number of push notifications increases within the defined time period. For example, within a 5-minute period:

After 5 push notifications, the user must authenticate with a security key.
After 10 push notifications, the user must authenticate with biometrics.
After 15 push notifications, the user is denied access.

If you select Deny for the first or second limit action, no further actions can be specified.

The following sample demonstrates the use of this rule.

{
"authenticationSource": "WEB",
"authenticationPolicies":
[
   {
       "policyName": "Policy that uses rate limit push notification rule",
       "targets":
           {"APPLICATION":["com.pingidentity.webportal.mfa"]
           ,"GROUP":["My Group"]
           },
       "rateLimitPushNotificationPolicy": {
          "policyAction": null,
          "priority": 1,
          "rateLimitPushNotificationInnerPolicies": [
            {
              "policyAction": "WebAuthn",
              "priority": 1,
              "rateLimit": 5,
              "period": 5,
              "name": "inner_rate_limit_push_notification_policy"
            },
            {
              "policyAction": "WEBAUTHN_PLATFORM",
              "priority": 2,
              "rateLimit": 10,
              "period": 5,
              "name": "inner_rate_limit_push_notification_policy"
            },
            {
              "policyAction": "Deny",
              "priority": 3,
              "rateLimit": 15,
              "period": 5,
              "name": "inner_rate_limit_push_notification_policy"
            }
          ],
          "name": "rate_limit_push_notification_policy",
        },
       "defaultPolicyAction": "AUTHENTICATE",
       "showAuthenticationScreen": true,
       "priority": 1
   },
   {
       "defaultPolicyAction": "AUTHENTICATE",
       "showAuthenticationScreen": true,
       "priority": 2
   }
   ]
}

Rule-specific parameters

The actions for the different risk scores are defined in an array called rateLimitPushNotificationPolicy

parameter Data Type Description

parameter	Data Type	Description
rateLimitPushNotificationPolicy	Array	Mandatory. Define at least one limit and a maximum of three limits in the array. Each entry in the array must include three mandatory fields: `policyAction` (String) Any action listed in the Actions section, except `Approve` or `Authenticate`. If `Deny` is selected, no further entries are allowed in the array. `RateLimit` (Integer) Number of push notifications that can be sent before the `policyAction` is triggered (1-20). Note: When adding more than one entry in the array, the rate limit must be higher than the rate limit for the previous entry in the array.`period` (Integer) The time period within which the push notifications limit applies (1-120 minutes).

rateLimitPushNotificationPolicy

Array

Mandatory. Define at least one limit and a maximum of three limits in the array. Each entry in the array must include three mandatory fields: policyAction (String) Any action listed in the Actions section, except Approve or Authenticate. If Deny is selected, no further entries are allowed in the array. RateLimit (Integer) Number of push notifications that can be sent before the policyAction is triggered (1-20). Note: When adding more than one entry in the array, the rate limit must be higher than the rate limit for the previous entry in the array.period (Integer) The time period within which the push notifications limit applies (1-120 minutes).

PingID API Reference

Web Authentication Policy API

Basic rules for creating policies

API-specific issues when creating policies

Structure of requests

Reading existing policies (readbulkauthenticationpolicy)

Creating a set of policies (createbulkauthenticationpolicy)

Targets

Actions

Allowed Methods

Accessing device and authenticating device

Rules

Parameters relevant for all rules

Accessing from countries rule

Recent authentication rule

Accessing from company network rule

Recent authentication from company network rule

Recent authentication from office rule

Authenticating from new device rule

Geovelocity anomaly rule

IP reputation rule

Anonymous network detection rule

User risk behavior rule

Risk level rule

Limit push notifications rule
