PingID API Reference

PingID User Management API

User Management API

If you are managing PingID users from within PingOne SSO, you must use the PingOne API.

The PingID user management API consists of operations for managing PingID users, their status and their paired devices:

  • The user’s lifecycle can be managed via the AddUser, GetUserDetails, EditUser and DeleteUser operations. These allow an administrator to perform CRUD actions on a user in the PingID service.

  • The status of a user (whether they are active, bypassed or suspended) can be managed with the ActivateUser, ToggleUserBypass and SuspendUser operations.

  • Devices are managed via the GetActivationCode, GetPairingStatus, StartOfflinePairing and FinalizeOfflinePairing, PairYubiKey and UnpairDevice operations.

Online Pairing Workflow

This will pair a users device (and PingID application) to the PingID service so that a user can be authenticated via the AuthenticateOnline operation. The following workflow can be used to pair a user and their device:

  1. The organization’s administrator enters the new user name in the organization’s internal user directory.

  2. The client application calls the AddUser PingID API with an activateUser value of "false."

  3. The client application offers the user a choice of registration methods: either online registration via mobile device, or offline registration via SMS, email, voice or YubiKey device.

  4. The user chooses the Online Pairing method.

  5. The client application calls the GetActivationCode operation.

  6. The client application displays the the activation code to the user, in either numeric or QR code format.

  7. The client application starts polling the device pairing status by calling the GetPairingStatus operation periodically.

  8. In the PingID mobile app, the user either scans the QR code or types in the numeric code and selects "Pair Device."

  9. Once the PingID mobile app has been paired, the call to GetPairingStatus will return SUCCESS and the pairing process is complete.

If it is known that the user will use the online pairing process before creating the user, the activateUser parameter can be set to "true" during the AddUser operation to receive the activation code in the response to the AddUser operation rather than make a second call to the GetActivationCode operation.
pid i onlinePairing

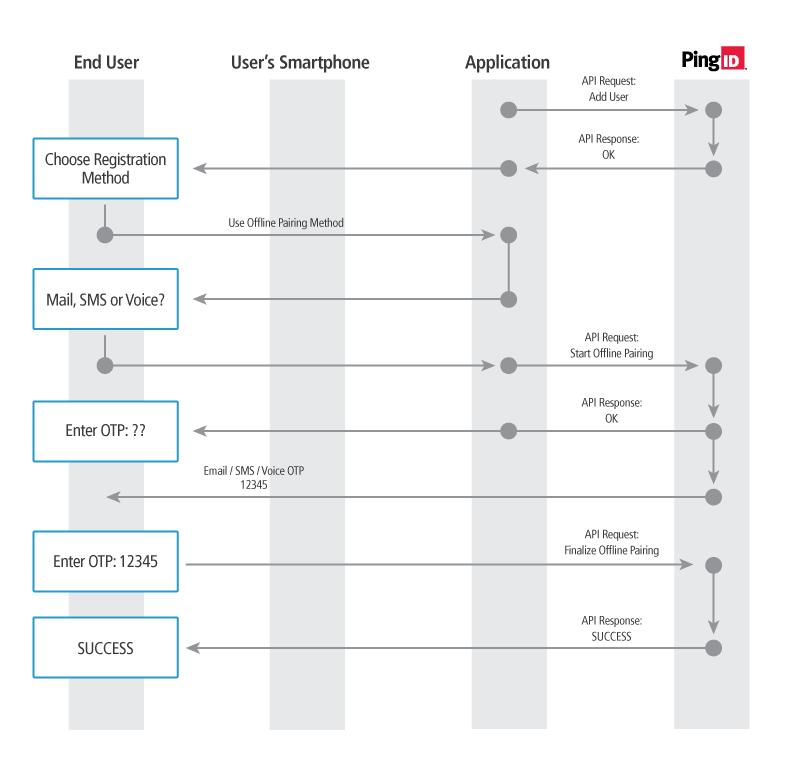

Offline Pairing Workflow

The offline pairing workflow pairs the user’s PingID account to either an SMS, Email or Voice authentication method. The following workflow can be implemented to pair a users device:

  1. The organization’s administrator enters the new user name in the organization’s internal user directory.

  2. The client application calls the AddUser PingID API with an activateUser value of "false."

  3. The client application offers the user a choice of registration methods: either online registration via mobile device, or offline registration via SMS, email, voice or YubiKey device.

  4. The user chooses the offline pairing method.

  5. The client application prompts the user to enter a phone number or an email address.

  6. The client application calls the StartOfflinePairing operation, passing the user’s choice of SMS, email or voice message and contact details.

  7. The PingID service sends an OTP via SMS, email or voice message, depending on the method selected previously.

  8. The client application prompts the user to enter the OTP received by SMS, email or voice message.

  9. The client application calls the FinalizeOfflinePairing PingID API, passing the OTP that the user entered to complete the pairing process.

pid i offlinePairing

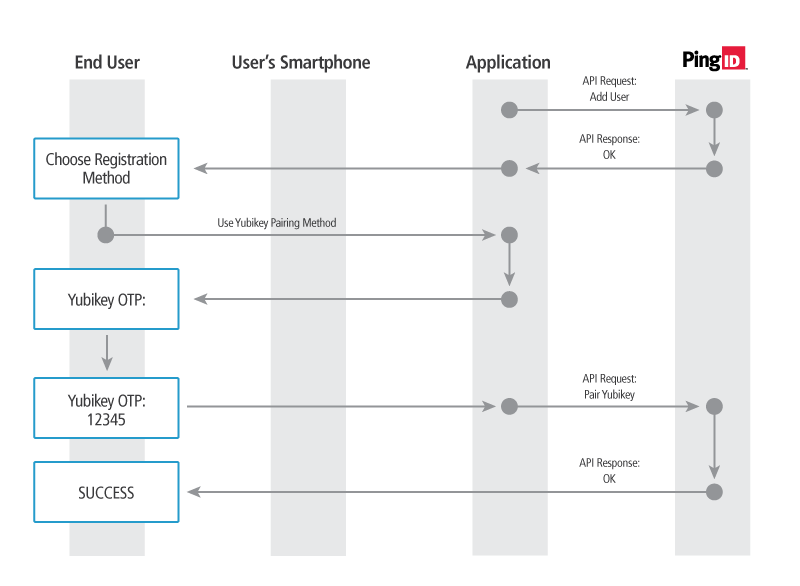

YubiKey Pairing Workflow

An organization can use YubiKey’s to provide an offline authentication method. Once the user has selected YubiKey as their authentication method, the following steps must be implemented:

  1. The organization’s administrator enters the new user name in the organization’s internal user directory.

  2. The client application calls the AddUser PingID API with an activateUser value of "false."

  3. The client application offers the user a choice of registration methods: either online registration via mobile device, or offline registration via SMS, email, voice or YubiKey device.

  4. The user chooses the YubiKey pairing method.

  5. The client application prompts the user to enter an OTP obtained from the YubiKey device.

  6. The client application calls the PairYubiKey operation, passing the OTP that the user entered to complete the pairing process.

pid i yubikeyPairing

FIDO pairing workflow

When a user wants to pair a FIDO security key or a FIDO supported biometrics device, the service provider initiates the authentication process with the WebAuthnStartPairing API, which returns parameter data required for public key credentials. These parameters are used as an input for the call to the browser’s "navigator.credentials.create" function, which is the next step in the WebAuthn pairing flow.

The "navigator.credentials.create function" returns the public key credentials.

The WebAuthnFinishPairing API then uses the public key credentials and input parameters in its request body, and completes the pairing process for the FIDO security key or FIDO supported biometrics device.

For further information, refer to:

PingID supports use cases of FIDO hybrid mode authentication, where a custom UI (not hosted by PingID) is used for registration, while PingID’s out of the box UI is used for authentication. PPM request, which was originally developed to support authentication, also supports explicit FIDO registration. For further information see PPM request for FIDO authentication with a hybrid UI.

User Status Values

The following table describes the different statuses a user entity might have throughout its life-cycle. A user’s status depends both on the PingID administrator’s actions and on whether the user has registered a mobile device with the system.

Status Description

ACTIVE

The user can perform any operation within the user’s privileges. This means that the administrator created this user in the system, and the user completed the registration process and was paired with a device.

PENDING

The user started the registration process but did not finish it. Therefore the user is not yet paired with a device.

NOT_ACTIVE

One of the following scenarios:

  • The user exists in the system, but was not activated yet. This might occur if the administrator first creates a list of users and activates them later.

  • The user was activated and was sent an activation message and code, but the activation code has expired.

PENDING_ACTIVATION

The user was activated but not paired with a device.

SUSPENDED

The administrator suspended this user’s ability to be authenticated by PingID. This might happen, for instance, if the user can’t find the registered device and the administrator wants to protect against a possible theft and illegal access to the system.

PENDING_CHANGE_DEVICE

The user’s device was deleted by the administrator and should be re-registered with a new activation code. This might happen, for instance, if the user is upgrading to a new device.

When the organization’s application calls the GetActivationCode operation, a numeric activation code is returned. Either the user can enter the numeric code manually into the PingID mobile app, or the application can render a QR code, which the user can scan within the PingID mobile app (or any QR reader).

To create the activation code link to display to the user within a mobile application:

  1. Create a string "act_code=<activation_code>", where <activation_code> is the numeric code you received in the GetActivationCode response.

  2. Encode this value with Base64, and add it as a query parameter to the redirect URL (https://idpxnyl3m.pingidentity.com/pingid/QRRedirection).

This URL will redirect the user to the PingID mobile app, and will use the activation code to pair the user:

https://idpxnyl3m.pingidentity.com/pingid/QRRedirection?base64(act_code=<activation_code>)

To show an activation QR code within a web application, generate a QR code from the above redirect link, using any supported library, for example: com.google.zxing.qrcode.QRCodeWriter.

There are a number of open source QR code generation libraries available. This document does not endorse a specific library to perform the encoding.

AddUser

The administrator who manages the service provider’s users will initiate an AddUser operation for each new user the administrator wants to create in the PingID service. The new user will still have to be paired with a mobile device before using PingID for authentication.

This is the AddUser URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/adduser/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "activateUser": false,
 "fname": "John",
 "lname": "Doe",
 "email": "jdoe@pingdevelopers.com",
 "username": "jdoe",
 "role": "REGULAR",
 "clientData": "Session data echoed back to the requestor",
 "deviceType": "DESKTOP"
}

The parameters included in the reqBody object are:

Parameter DataType Description

activateUser

Boolean

Whether to activate as well as add the user (true/false). If this value is set to true, an activation code for the user is sent in the response.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

email

String

Optional. The user’s email address.

fname

String

Optional. The user’s first name.

lname

String

Optional. The user’s last name.

role

String

One of:

  • ADMIN: A user with administrator privileges.

  • REGULAR: A user without administrator privileges.

username

String

The user’s assigned user name. Must be unique in an organization. Up to 250 characters; can contain any characters, including blanks.

deviceType

String

Optional.
The device type for MFA.
When specified, PingID will enforce and restrict pairing to the specified device type.
When not specified, any permitted device type may be used for pairing.

Valid values:

  • DESKTOP

  • MOBILE

Response Body Parameters

Example response body:

{
 "userDetails": {
  "email": "jdoe@jdoe.com",
  "lname": "Doe",
  "userEnabled": false,
  "fname": "John",
  "spList": [],
  "lastLogin": null,
  "deviceDetails": null,
  "userName": "jdoe",
  "status": "NOT_ACTIVE"
 },
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

userDetails

Object

See details in the table below.

The userDetails parameters:

Parameter DataType Description

deviceDetails

Object

The details of the default device that is paired for the user. See the deviceDetails table below.

devicesDetails

Array

An array of deviceDetails objects containing the details of the all the devices that are paired for the user.

email

String

The user’s email address.

fname

String

The user’s first name.

lastLogin

DateTime (epoch)

The date and time of the user’s last login to PingID (in UNIX epoch format).

lname

String

The user’s last name.

spList

Array

The list of objects describing the authentication services the user can access. The objects can be for these services: "web", "pingone" (indicates single sign-on), "ssh", "vpn". See the table below.

status

String

The user’s status. One of:

  • ACTIVE - The user is paired with a device and can authenticate with PingID.

  • NOT_ACTIVE - The user was created in PingID but did not start the pairing process.

  • PENDING_ACTIVATION - The user was created and received a pairing key to register with the PingID app.

  • SUSPENDED - The user has been temporarily suspended and cannot authenticate using PingID.

  • PENDING_CHANGE_DEVICE - The user is registered but has been unpaired from a previously paired device.

userEnabled

Boolean

Indicates whether the user was enabled by the PingID account administrator. If so, the user can pair with a device and can then perform authentication.

userName

String

The user’s PingID user name.

bypassExpiration

DateTime (epoch)

[Deprecated]

The date and time when the user’s enabled bypass mode will expire (in UNIX epoch format).

userInBypass

Boolean

[Deprecated]

Indicates whether the user is in bypass mode.

The deviceDetails list (one or more objects):

Parameter DataType Description

email

String

The user’s email address for the OTP message (non-null if email authentication is configured).

appVersion

String

The PingID application version installed on the device.

hasWatch

Boolean

Indicates whether the authentication device is an Apple iWatch.

countryCode

String

The country code of the device’s phone number (non-null if SMS or voice authentication is configured).

sentClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

phoneNumber

String

The user’s assigned phone number.

nickname

String

A nickname assigned to the user.

deviceModel

String

The manufacturer and model information for the device.

enrollment

DateTime

Format is: yyyy-MM-dd HH:mm:ss.SSS. U.S. MST timezone.

availableNotClaimedSms

Int

The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

availableClaimedSms

Int

The remaining available times within the current day that the user can request an OTP via SMS or voice message, which is then used for authentication. This value is reset daily (it is limited because of the costs incurred for the user).

deviceRole

String

The authenticating role of the device. This can be PRIMARY or SECONDARY.

pushEnabled

Boolean

Indicates whether the authentication process can push data to the device.

deviceId

Long

Uniquely identifies the device.

displayID

String

The ID of the device, according to the device’s type. For example:

  • Device model (Mobile device)

  • Serial number (YubiKey)

  • Country code and phone number (SMS and Voice)

  • Email address (Email)

  • Client browser platform (FIDO biometrics)

sentNotClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message without using the OTP for authentication).

type

String

The type of device used.

Possible values:

  • Android

  • iPhone

  • SMS

  • Voice

  • YubiKey

  • Email

  • Desktop

  • Security Key

  • FIDO2 Biometrics

  • Hardware Token

  • Authenticator App

If the caller uses API Version below 4.9 in the header, there is a possibility some old PC Clients will be displayed as "PC Client".

osVersion

String

If applicable, the operating system version used by the device.

oathSerialNumber

String

The serial number of the device if it is an OATH token.
Null, if the device is not an OATH token.

oathTokenType

String

Type of token, if the device is an OATH token.

Possible values:

- HOTP - TOTP

Null, if the device is not an OATH token.

The spList list (an object):

Parameter DataType Description

spAlias

String

The alias used to identify the authentication service (such as, pingone or web).

status

String

The status of the authentication service. This can be ACTIVE, NOT_ACTIVE or BYPASS.

spName

String

The service name for the authentication service.

bypassExpiration

DateTime (epoch)

The date and time bypass mode will expire for the user (in UNIX epoch format).

GetUserDetails

The service provider application may retrieve a user’s details for display purposes, for instance, for displaying within a UI page in order to allow the user to edit the details.

This is the GetUserDetails URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/getuserdetails/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "getSameDeviceUsers": false,
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

getSameDeviceUsers

Boolean

Whether to return multiple users paired with the same device.

userName

String

The name of the user whose details you want to retrieve.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "userDetails": {
 "email": "jdoe@gmail.com",
 "userName": "jdoe",
 "lname": "",
 "spList": [],
 "lastLogin": null,
 "deviceDetails": null,
 "userEnabled": false,
 "fname": "Johnny",
 "status": "PENDING_ACTIVATION",
 "role": "ADMIN"
 },
 "sameDeviceUsersDetails": [],
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

sameDeviceUsersDetails

Array

If requested, the user details for multiple users on the same device.

userDetails

Object

See details in the table below.

The userDetails parameters:

Parameter DataType Description

deviceDetails

Object

The details of the default device that is paired for the user. See the deviceDetails table below.

devicesDetails

Array

An array of deviceDetails objects containing the details of the all the devices that are paired for the user.

email

String

The user’s email address.

fname

String

The user’s first name.

lastLogin

DateTime (epoch)

The date and time of the user’s last login to PingID (in UNIX epoch format).

lname

String

The user’s last name.

spList

Array

The list of objects describing the authentication services the user can access. The objects can be for these services: "web", "pingone" (indicates single sign-on), "ssh", "vpn". See the table below.

status

String

The user’s status. One of:

  • ACTIVE - The user is paired with a device and can authenticate with PingID.

  • NOT_ACTIVE - The user was created in PingID but did not start the pairing process.

  • PENDING_ACTIVATION - The user was created and received a pairing key to register with the PingID app.

  • SUSPENDED - The user has been temporarily suspended and cannot authenticate using PingID.

  • PENDING_CHANGE_DEVICE - The user is registered but has been unpaired from a previously paired device.

userEnabled

Boolean

Indicates whether the user was enabled by the PingID account administrator. If so, the user can pair with a device and can then perform authentication.

userName

String

The user’s PingID user name.

bypassExpiration

DateTime (epoch)

[Deprecated]

The date and time when the user’s enabled bypass mode will expire (in UNIX epoch format).

userInBypass

Boolean

[Deprecated]

Indicates whether the user is in bypass mode.

The deviceDetails list (one or more objects):

Parameter DataType Description

appVersion

String

The PingID application version installed on the device.

authenticationAttachment

String

For FIDO2 devices, indication of the type of authenticator attachment: platform for a platform authenticator, cross-platform for a roaming authenticator. For legacy devices that were migrated to FIDO2, the value will be cross-platform for security keys, and platform for biometrics.

availableClaimedSms

Int

The remaining available times within the current day that the user can request an OTP via SMS or voice message, which is then used for authentication. This value is reset daily (it is limited because of the costs incurred for the user).

availableNotClaimedSms

Int

The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

countryCode

String

The country code of the device’s phone number (non-null if SMS or voice authentication is configured).

deviceId

Long

Uniquely identifies the device.

deviceModel

String

The manufacturer and model information for the device.

deviceRole

String

The authenticating role of the device. This can be PRIMARY or SECONDARY.

email

String

The user’s email address for the OTP message (non-null if email authentication is configured).

enrollment

DateTime

Format is: yyyy-MM-dd HH:mm:ss.SSS. U.S. MST timezone.

hasWatch

Boolean

Indicates whether the authentication device is an Apple iWatch.

nickname

String

A nickname assigned to the user.

oathSerialNumber

String

The serial number of the device if it is an OATH token.
Null, if the device is not an OATH token.

oathTokenType

String

Type of token, if the device is an OATH token.

Possible values:

- HOTP - TOTP

Null, if the device is not an OATH token.

osVersion

String

If applicable, the operating system version used by the device.

phoneNumber

String

The user’s assigned phone number.

pushEnabled

Boolean

Indicates whether the authentication process can push data to the device.

sentClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

sentNotClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message without using the OTP for authentication).

type

String

The type of device used.

Possible values:

  • Android

  • iPhone

  • SMS

  • Voice

  • YubiKey

  • Email

  • Desktop

  • Security Key

  • FIDO2 Biometrics

  • Hardware Token

  • Authenticator App

If the caller uses API Version below 4.9 in the header, there is a possibility some old PC Clients will be displayed as "PC Client".

transports

Array[String]

For FIDO2 devices, deviceDetails includes the transports array, which contains hints as to how clients can communicate with the authenticator. Will contain one or more of the following values:

  • usb - authenticator can be contacted over USB

  • nfc - authenticator can be contacted over Near Field Communication (NFC)

  • ble - authenticator can be contacted over Bluetooth Smart (Bluetooth Low Energy / BLE)

  • internal - authenticator is contacted using a client device-specific transport (meaning it is a platform authenticator)

  • hybrid - authenticator can be contacted with a combination of data transport and proximity mechanisms, for example, authentication on a desktop computer using a smartphone

  • smart-card - authenticator can be contacted over ISO/IEC 7816 smart card with contacts

The spList list (an object):

Parameter DataType Description

spAlias

String

The alias used to identify the authentication service (such as, pingone or web).

status

String

The status of the authentication service. This can be ACTIVE, NOT_ACTIVE or BYPASS.

spName

String

The service name for the authentication service.

bypassExpiration

DateTime (epoch)

The date and time bypass mode will expire for the user (in UNIX epoch format).

EditUser

If you are managing PingID users from within PingOne SSO, you must use the PingOne API.

The service provider application may allow users to edit their own details, such as first and last name or email address. The service provider’s user administrator may also want to update user details. In both these cases, the service provider application calls edituser.

When using edituser, keep in mind that all of the existing details for the specified user will be cleared. So if, for example, the existing user details include an email address, make sure to provide the email address in the payload of reqBody when you call edituser. Any fields that you do not include will be set to null.

Therefore, the recommended way to use edituser is to first call getuserdetails, and then use the returned object as the basis for the object that you are including for the edituser call.

This is the EditUser URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/edituser/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "activateUser": false,
 "email": "jdoe@pingdevelopers.com",
 "fname": "Johnny",
 "lname": "Doe",
 "role": "REGULAR",
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

activateUser

Boolean

Whether to activate as well as add the user (true/false). If this value is set to true, an activation code for the user is sent in the response.

email

String

Optional. The user’s email address.

fname

String

Optional. The user’s first name.

lname

String

Optional. The user’s last name.

role

String

One of:

  • ADMIN: A user with administrator privileges.

  • REGULAR: A user without administrator privileges.

userName

String

The user’s assigned user name. Must be unique in an organization. Up to 250 characters; can contain any characters, including blanks.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "userDetails": {
  "email": "jdoe@jdoe.com",
  "lname": "Doe",
  "userEnabled": false,
  "fname": "Johnny",
  "spList": [],
  "lastLogin": null,
  "deviceDetails": null,
  "userName": "jdoe",
  "status": "NOT_ACTIVE"
 },
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

sameDeviceUsersDetails

Array

If requested, the user details for multiple users on the same device.

activationCode

String

If the new user was activated during this call, an activation code is returned, which this user can use for online activation of their account.

userDetails

Object

See details in the table below.

The userDetails parameters:

Parameter DataType Description

deviceDetails

Object

The details of the default device that is paired for the user. See the deviceDetails table below.

devicesDetails

Array

An array of deviceDetails objects containing the details of the all the devices that are paired for the user.

email

String

The user’s email address.

fname

String

The user’s first name.

lastLogin

DateTime (epoch)

The date and time of the user’s last login to PingID (in UNIX epoch format).

lname

String

The user’s last name.

spList

Array

The list of objects describing the authentication services the user can access. The objects can be for these services: "web", "pingone" (indicates single sign-on), "ssh", "vpn". See the table below.

status

String

The user’s status. One of:

  • ACTIVE - The user is paired with a device and can authenticate with PingID.

  • NOT_ACTIVE - The user was created in PingID but did not start the pairing process.

  • PENDING_ACTIVATION - The user was created and received a pairing key to register with the PingID app.

  • SUSPENDED - The user has been temporarily suspended and cannot authenticate using PingID.

  • PENDING_CHANGE_DEVICE - The user is registered but has been unpaired from a previously paired device.

userEnabled

Boolean

Indicates whether the user was enabled by the PingID account administrator. If so, the user can pair with a device and can then perform authentication.

userName

String

The user’s PingID user name.

bypassExpiration

DateTime (epoch)

[Deprecated]

The date and time when the user’s enabled bypass mode will expire (in UNIX epoch format).

userInBypass

Boolean

[Deprecated]

Indicates whether the user is in bypass mode.

The deviceDetails list (one or more objects):

Parameter DataType Description

email

String

The user’s email address for the OTP message (non-null if email authentication is configured).

appVersion

String

The PingID application version installed on the device.

hasWatch

Boolean

Indicates whether the authentication device is an Apple iWatch.

countryCode

String

The country code of the device’s phone number (non-null if SMS or voice authentication is configured).

sentClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

phoneNumber

String

The user’s assigned phone number.

nickname

String

A nickname assigned to the user.

deviceModel

String

The manufacturer and model information for the device.

enrollment

DateTime

Format is: yyyy-MM-dd HH:mm:ss.SSS. U.S. MST timezone.

availableNotClaimedSms

Int

The times within the current day that the user requested an OTP via SMS or voice message and used the OTP for authentication.

availableClaimedSms

Int

The remaining available times within the current day that the user can request an OTP via SMS or voice message, which is then used for authentication. This value is reset daily (it is limited because of the costs incurred for the user).

deviceRole

String

The authenticating role of the device. This can be PRIMARY or SECONDARY.

pushEnabled

Boolean

Indicates whether the authentication process can push data to the device.

deviceId

Long

Uniquely identifies the device.

sentNotClaimedSms

Int

[Deprecated] The times within the current day that the user requested an OTP via SMS or voice message without using the OTP for authentication).

type

String

The type of device used.

Possible values:

  • Android

  • iPhone

  • SMS

  • Voice

  • YubiKey

  • Email

  • Desktop

  • Security Key

  • FIDO2 Biometrics

  • Hardware Token

  • Authenticator App

If the caller uses API Version below 4.9 in the header, there is a possibility some old PC Clients will be displayed as "PC Client".

osVersion

String

If applicable, the operating system version used by the device.

oathSerialNumber

String

The serial number of the device if it is an OATH token.
Null, if the device is not an OATH token.

oathTokenType

String

Type of token, if the device is an OATH token.

Possible values:

  • HOTP

  • TOTP

Null, if the device is not an OATH token.

The spList list (an object):

Parameter DataType Description

spAlias

String

The alias used to identify the authentication service (such as, pingone or web).

status

String

The status of the authentication service. This can be ACTIVE, NOT_ACTIVE or BYPASS.

spName

String

The service name for the authentication service.

bypassExpiration

DateTime (epoch)

The date and time bypass mode will expire for the user (in UNIX epoch format).

DeleteUser

If you are managing PingID users from within PingOne SSO, you must use the PingOne API.

The service provider’s administrator will initiate a DeleteUser request for a user who must be removed from the PingID authentication system, for instance an employee who leaves the company, or a customer who is no longer a user of the service provider.

This is the DeleteUser URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/deleteuser/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user to delete.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

SuspendUser

The service provider’s administrator may want to temporarily suspend a user from performing authentication via the PingID system, for example, if the user is on temporary leave. When a user is suspended, the user can’t be authenticated and therefore can’t access the service provider’s services.

A suspended user can be reactivated by calling ActivateUser.

This is the SuspendUser URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/suspenduser/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user to suspend.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

ActivateUser

After a user has been suspended by calling SuspendUser, you can reactivate the user by calling ActivateUser. Depending on the user status, ActivateUser optionally generates an activation code as part of an activation process. See the activationCode parameter description in the response body, that lists the conditions for ActivateUser to generate an activation code.

This is the ActivateUser URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/activateuser/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor",
 "deviceType": "DESKTOP"
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user to activate.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

deviceType

String

Optional.

The device type for MFA.

When specified, PingID will enforce and restrict pairing to the specified device type. When not specified, any permitted device type may be used for pairing.

Valid values:

  • DESKTOP

  • MOBILE

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

activationCode

Long

The activation code for the user.

An activation code is only returned when the user status has one of the following values:

  • PENDING

  • NOT_ACTIVE

  • PENDING_ACTIVATION

  • If the user status is one of the above values, and the deviceType parameter is defined in the request, then the returned activation code will only work for pairing the specified device type.

AddService

Ordinarily, a user is added to a PingID service such as the PingID integration with Windows login the first time that they log in and perform a successful MFA. However, if there is a situation where you want to set a bypass for a new user for a specific service such as the Windows login, you must first manually add them to the service using the addservice endpoint and then submit a request using the userbypass endpoint with the relevant service as a parameter. For more information, see ToggleUserBypass.

This is the AddService URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/addservice/do

Request Body Parameters

Example reqBody object in the payload:

"reqHeader": { ... },
"reqBody": {
  "userName": "joe",
  "spAlias": "winlocal"
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user that should be added to the specified service.

spAlias

String

The service to which the user should be added. For a list of the values that can be used, see PingID Services

Response Body Parameters

Example response body:

{
  "clientData": null,
  "errorId": 200,
  "errorMsg": "ok",
  "uniqueMsgId": "webs_jiPPOV2bTiCa0Tg0kGqMonYYnYlo2gU45WDwECNykmk"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

ToggleUserBypass

The service provider’s administrator may want to temporarily bypass authentication for a specific user. This could happen, for instance, if the user is having a temporary technical problem with a mobile device, and the user has spoken with the administrator and requested a bypass. When a user is in bypass mode, the user can login with a username and password alone, and is not prompted for PingID authentication.

When you want to activate a bypass for the user, set the bypassUntil parameter value to a datetime that indicates the end of the bypass period. To remove the bypass for the user, call the same ToggleUserBypass operation, but set the bypassUntil value to null.

This is the ToggleUserBypass URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/userbypass/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
  "bypassUntil": 1439913346850,
  "userName": "jdoe",
  "spAliases": [
    "winlocal",
    "winremote"
  ],
  "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

bypassUntil

DateTime (epoch)

The end of the bypass period. This is a number which indicates the number of milliseconds between 1/1/1970 (Unix epoch in ms) and the desired end time in the UTC time zone.

userName

String

The username of the user to toggle user bypass.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

spAliases

Array

Optional. If you want the bypass to apply to only specific PingID services, use spAliases to list the services to which the bypass should apply. The value should be an array of strings from the values found in PingID Services, for example, ["vpn", "web"].

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

GetActivationCode

The service provider’s administrator may want to get an activation code for a user who has been added to the PingID system but not activated. The user then enters this activation code either by typing it or scanning a QR code, to perform online activation.

This is the GetActivationCode URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/getactivationcode/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "userName": "jdoe",
 "clientData": "Session data echoed back to the requestor",
 "deviceType": "DESKTOP",
 "hoursUntilExpiration": 168
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user whose activation code you want.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

deviceType

String

Optional.

The device type for MFA.

When specified, PingID will enforce and restrict pairing to the specified device type.

When not specified, any permitted device type may be used for pairing.

Valid values:

  • DESKTOP

  • MOBILE

hoursUntilExpiration

Int

Optional. Number of hours until the activation code expires. This can be any integer between 1 and 336 (two weeks). If this parameter is not specified, the activation code is valid for 48 hours. If you want to cover situations where the code has expired, you can include in your application a button that calls getactivationcode again so that the user can get a valid activation code.

Response Body Parameters

Example response body:

{
 "activationCode": "436348609435",
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

activationCode

Long

The activation code for the user.

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

GetPairingStatus

The service provider’s application can call GetPairingStatus to retrieve the pairing status of a specific user who has been prompted to perform online pairing. The pairing status returned will vary depending on whether the pairing process hasn’t started, is in progress, or has started, and whether the process was completed successfully.

This is the GetPairingStatus URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/pairingstatus/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "activationCode": "436348609435",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

activationCode

Long

The activation code sent by PingID for device pairing.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "pairingStatus": "PAIRED",
 "errorId": 200,
 "errorMsg": "",
 "deviceId":2841591,
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

pairingStatus

String

The current status of the pairing operation. One of:

  • NOT_EXIST - No such valid activation code exists.

  • NOT_CLAIMED - No one used this activation code yet.

  • VERIFIED - The user has started the pairing process and successfully verified the activation code, but the pairing process is not complete.

  • PAIRED - Device pairing was conpleted, but user has not filled in the registration form.

  • SUCCESS - The user completed device pairing successfully. Note that this value is only returned the first time the status is queried after device pairing. Another query will produce a NOT_EXIST status.

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

deviceId

Long

The device ID that is associated with this device.

StartOfflinePairing

The call to StartOfflinePairing causes PingID to send an OTP to the user via email, SMS or voice message, as indicated in the call parameters. The user must then enter the OTP manually to the service provider’s application, which should then call FinalizeOfflinePairing while providing the OTP, to complete the pairing process.

This is the StartOfflinePairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/startofflinepairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "username": "jdoe",
 "type": "SMS",
 "pairingData": "13035551234",
 "clientData": "Session data echoed back to the requestor",
 "validateUniqueDevice": "true"
}

The parameters included in the reqBody object are:

Parameter DataType Description

username

String

The username of the user to start offline pairing for.

type

String

The type of offline device that will be paired. One of:

  • SMS - send an OTP in a text message.

  • VOICE - send an OTP in a voice message.

  • EMAIL - send an OTP in an email message.

  • TOKEN - the user will pair using the OTP from an OATH token.

pairingData

String

The message target, whose value depends on the type value.

  • EMAIL: Provide an email address.

  • OATH token: The serial number of the token.

  • SMS or VOICE: Provide an international phone number. When the type of offline device is VOICE, you can use phone numbers with extensions, where a comma and the extension number follow the phone number. Examples:

    • The phone number +12025550123 with an extension 2992 is represented as "pairingdata": "+12025550123,2992"

    • The extension may include the # or * characters. For example: "pairingdata": "+12025550123,#2992"

      or

      "pairingdata": "+12025550123,2992#"

    • If there is a nested extension, then a comma should separate the extension and the nested extension. For example: "pairingdata": "+12025550123,#2992,#2991"

    • Each comma generates a two-second pause. After the call is answered, the extension is dialed after two seconds. If a pause is required for longer than two seconds, add an additional comma for each additional two-second pause. For example, three commas for a six-second pause before the nested extension: "pairingdata": "+12025550123,#2992,,,#2991"

clientData

String

Optional.

This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

validateUniqueDevice

Boolean

Optional.

Default: false.

Set to "true" in order to verify that the device is unique in the organization in context, as a prerequisite to pairing.

Response Body Parameters

Example response body:

{
 "sessionId": "oacts_rxodmgpbVkjVltIBVP7C7m6y6ddsOY-a8BYqpDHHxZY",
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

sessionId

String

A session ID value that must be sent in the sessionId parameter of the matching FinalizeOfflinePairing call.

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

deviceId

String

Unique identifier for the device being paired.

deviceUuid

String

UUID representation of the device being paired.

tokenType

String

The parameter tokenType is only returned in cases where the type specified in the request body was TOKEN (meaning that an OATH token is being used for pairing). The value will be HOTP or TOTP, depending on the type of token.

FinalizeOfflinePairing

The call to FinalizeOfflinePairing completes the pairing process initiated by calling StartOfflinePairing. The user enters the OTP manually to the service provider’s application, which calls FinalizeOfflinePairing while providing this OTP value.

This is the FinalizeOfflinePairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/finalizeofflinepairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "sessionId": "oacts_rxodmgpbVkjVltIBVP7C7m6y6ddsOY-a8BYqpDHHxZY",
 "otp": "123456",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

sessionId

String

The sessionId value received in the response to StartOfflinePairing.

otp

String

The one-time password entered by the user.

clientData

String

Optional.

This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

oathResync

boolean

Optional.

Determine whether the server should attempt to resync the token during pairing (default is false).

If it set to true, it checks if the token is out of sync, and if so, returns the 30016 status. In this case, the caller can call FinalizeOfflinePairing again with the "otp" parameter value as the next OTP displayed on the device, and the other parameters as they were in the previous request.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

embeddedParameters

Map

<String, String>

Optional key/value pairs.

Used to provide the client with the oathSerialNumber and oathTokenType (HOTP/TOTP).

In device management it provides instructions to the user based on the token type, or sends the resync request with the serial number, without the user re-entering it.

OfflinePairing

OfflinePairing pairs the user so that they can later authenticate with the method that was specified - email, SMS, voice message, OATH token, or authenticator app. (Note that there’s no verification of the email or phone number supplied).

This is the OfflinePairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/offlinepairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "username": "jdoe",
 "type": "SMS",
 "pairingData": "13035551234",
 "clientData": "Session data echoed back to the requestor",
 "validateUniqueDevice": "true"
}

The parameters included in the reqBody object are:

Parameter DataType Description

username

String

The username of the user.

type

String

The authentication method that will be used after pairing. Must be one of the following values:

  • SMS

  • VOICE

  • EMAIL

  • TOKEN (for OATH token)

  • AUTHENTICATOR_APP (for external TOTP authenticator app)

pairingData

String

The data required for pairing, depends on the type specified:

  • EMAIL: Provide an email address.

  • TOKEN: The serial number of the OATH token.

  • AUTHENTICATOR_APP: The user’s secret key for the authenticator app.

  • SMS or VOICE: Provide an international phone number. When the type of offline device is VOICE, you can use phone numbers with extensions, where a comma and the extension number follow the phone number. Examples:

    • The phone number +12025550123 with an extension 2992 is represented as "pairingdata": "+12025550123,2992"

    • The extension may include the # or * characters. For example:

      "pairingdata": "+12025550123,#2992"

      or

      "pairingdata": "+12025550123,2992#"

  • If there is a nested extension, then a comma should separate the extension and the nested extension. For example:

    "pairingdata": "+12025550123,#2992,#2991"

  • Each comma generates a two-second pause. After the call is answered, the extension is dialed after two seconds. If a pause is required for longer than two seconds, add an additional comma for each additional two-second pause. For example, three commas for a six-second pause before the nested extension:

    "pairingdata": "+12025550123,#2992,,,#2991"

clientData

String

Optional.
This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

validateUniqueDevice

Boolean

Optional.
Default: false.
Set to "true" in order to verify that the device is unique in the organization in context, as a prerequisite to pairing.

Response Body Parameters

Example response body:

{
 "sessionId": "oacts_rxodmgpbVkjVltIBVP7C7m6y6ddsOY-a8BYqpDHHxZY",
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
}

The parameters included in the responseBody object are:

Parameter DataType Description

sessionId

String

A session ID value that must be sent in the sessionId parameter of the StartOfflinePairing call.

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

deviceId

String

Unique identifier for the device being paired.

deviceUuid

String

UUID representation of the device being paired.

tokenType

String

The parameter tokenType is only returned in cases where the type specified in the request body was TOKEN (meaning that an OATH token is being used for pairing). The value will be HOTP or TOTP, depending on the type of token.

PairYubiKey

The service provider application can call PairYubiKey to pair a user with a YubiKey device instead of a mobile device. In this case, the user enters an OTP that the YubiKey generates, and this value must be passed in the call parameters.

This is the PairYubiKey URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/pairyubikey/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "otp": "ccccccdugencbubvthvennvnduljtfhnjldtnctfdfkn",
 "username": "jdoe",
 "clientData": "Session data echoed back to the requestor",
 "validateUniqueDevice": "true"
}

The parameters included in the reqBody object are:

Parameter DataType Description

otp

String

A one-time password generated by the YubiKey.

username

String

The username of the user to pair with the YubiKey.

clientData

String

Optional.
This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

validateUniqueDevice

Boolean

Optional.
Default: false.
Set to "true" in order to verify that the device is unique in the organization in context, as a prerequisite to pairing.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

deviceId

String

Unique identifier for the device being paired.

deviceUuid

String

UUID representation of the device being paired.

OATH token management

resyncoathtoken

Hardware tokens need to maintain time synchronization. If a token returns an error, it needs to be resynchronized.

PingID supports resyncing the token, one OTP at a time. The caller provides the first OTP. If the OTP is valid, then the status 30016 is returned together with a sessionId in the response body. The caller can make another resync call with the next OTP and the sessionId to complete the resync process.

This is the ResyncOathToken URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/resyncoathtoken/do

Request Body Parameters

Example reqBody object in the API payload:

The parameters included in the reqBody object are:

Parameter DataType Description

serialNumber

String

The token’s serial number.

otps

List

One-time passcodes.

The list can not be empty and can contain a maximum of 2 OTPs.

A valid OTP is a 6-digit or 8-digit string.

sessionId

String

Optional.

A session ID value that is returned from the previous resync call.

It can be used to complete an ongoing resync flow with the next OTP.

initiatedBy

enum - possible values USER or ADMIN

Optional. The initiator of the resync request.

Possible values:

  • ADMIN (default)

  • USER

username

String

The name of the user who initiated the resync request.
Mandatory if the value of initiatedBy=USER, otherwise it is ignored.

Single-step resync example

In a single-step resync process, two OTPs are provided in one request:

Single-step resync request

"reqBody": {
   "serialNumber": "123321",
   "otps": ["112814","889429"],
   "initiatedBy": "ADMIN"
}

Single-step resync response

Completion of a successful resync returns the HttpStatus=200 errorId=200 values.

{
 "responseBody": {
 "clientData": null,
 "errorId": 200,
 "errorMsg": "OK",
 "sessionId": null,
 "uniqueMsgId": "webs_V-12nF20Q6iSj7oyunUlN6uLc15k_fxp5KzsIfycDy0"
 }
}

Two-step resync example

In a two-step resync process, each OTP is provided, one at a time.

Two-step resync process (first step request)

"reqBody": {
   "serialNumber": "123321",
   "otps": ["112814"],
   "initiatedBy": "ADMIN"
}

Two-step resync process (first step response)

Successful completion of a the first step of a two-step resync returns the HttpStatus=200 errorId= 30016 values.

{
 "responseBody": {
 "clientData": null,
 "errorId": 30016,
 "errorMsg": "To resync this token, wait for the next passcode on your device and enter it.",
 "sessionId": "oarys_BQ413MplMhO0m2mN1vEha4lurBfJqHq756UbMfLQ-yA",
 "uniqueMsgId": "webs_Temma_l5cGnS2cF8v4xPO1kQmhcwzh5nRGHhNhzW4dk"
 }
}

Two-step resync process (second step request)

The request in the second step uses the sessionId that was returned in the response of the first step request.

"reqBody": {
 "serialNumber": "123321",
 "otps": ["222973"],
 "initiatedBy": "ADMIN",
 "sessionId": "oarys_M0lbkATkRWXH3bHcWrmTRpISAr6TKVFRcjUvnPSq0sk"
 }

Two-step resync process (second step response)

Successful completion of a the second step of a two-step resync returns the HttpStatus=200 errorId=200 values.

{
 "responseBody": {
 "clientData": null,
 "errorId": 200,
 "errorMsg": "OK",
 "sessionId": null,
 "uniqueMsgId": "webs_riJIWfq_XQvpW0oJLpSCqGc3pm1ZOroyUB1nG_xAn7U"
 }
}

createorgtokens

You can use the createorgtokens endpoint to upload a list of OATH tokens that can then be mapped to individual users.

This is the CreateOrgTokens` URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/createorgtokens/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
  orgAlias: "111111111111111111111111111111",
  tokens: [
    {
      serialNumber: "1",
      tokenType: "TOTP",
      secretKey: "AAAAAAAAAAAAAAAAAAAAAAAAAAA",
      otpLength: "6",
      timeStep: "30"
    },
    {
      serialNumber: "2",
      tokenType: "TOTP",
      secretKey: "EEEEEEEEEEEEEEEEEEEEEEEEEE",
      otpLength: "6",
      timeStep: "30"
    }
  ]
}

The parameters included in the reqBody object are:

Parameter DataType Description

orgAlias

String

The value of org_alias in the PingID properties file.

tokens[]

Array

Collection of OATH tokens that should be uploaded.

tokens[].serialNumber

String

The serial number of the token.

tokens[].tokenType

String

The type of token - can be TOTP or HOTP.

tokens[].secretKey

String

The secret key for the token.

tokens[].otpLength

String

The length of the OTP for the token - can be 6 or 8.

tokens[].timeStep

String

For tokens of type TOTP, the timestep for the OTP in seconds - value can be 30 or 60.

Response Body Parameters

The response body contains a jobToken field. You can then use the value of this field with the getjobstatus endpoint to retrieve the results of the upload attempt (see GetJobStatus).

Example response body:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": "ok",
    "jobToken": "XXXXXJobTokenXXXXXX",
    "uniqueMsgId": "webs_XXXX"
  }
}

When you use the value of jobToken in a getjobstatus request, the response looks like this:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": null,
    "status": "done",
    "jobResult": {
      "type": "CreateOath",
      "status": "DONE",
      "duplicates": [
        {
          "row": "",
          "serial": "1",
          "password": "1xxxxx"
        },
        {
          "row": "",
          "serial": "12",
          "password": "1xxxxxx"
        }
      ],
      "numberOfDuplicates": 2
    },
    "uniqueMsgId": "webs_NqLdXuJacyohO7SJG08q0hMLIiknQbEsfPoy47HnVo0"
  }

If there is already an existing token with the same serial number as a token you are trying to create, the remaining tokens are created, but there is no attempt to recreate the duplicate tokens.

  • jobResult.numberOfDuplicates indicates how many tokens in the request already exist.

  • If there were no duplicates, the jobResult.duplicates array will be empty. Otherwise, it will include the basic information for each of the tokens that were identified as duplicates: the serial number of the existing token (jobResult.duplicates.serial) and its secret key (jobResult.duplicates.password).

revokeorgtokens

You can use the revokeorgtokens endpoint to revoke one or more OATH tokens that you previously uploaded for use.

This is the RevokeOrgTokens URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/revokeorgtokens/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
  orgAlias: "1111111111111111111",
  unpairBeforeDelete: false,
  serialNumbers: ["72","107"]
}

The parameters included in the reqBody object are:

Parameter DataType Description

orgAlias

String

The value of org_alias in the PingID properties file.

unpairBeforeDelete

Boolean

By default, revoke requests will fail if one or more of the specified tokens are currently mapped to a user. If you want tokens to be revoked even if they are mapped to a user, set the value of unpairBeforeDelete to true.

serialNumbers[]

Array

Collection of the serial numbers of the tokens that are to be revoked.

Response Body Parameters

The response body contains a jobToken field. You can then use the value of this field with the getjobstatus endpoint to retrieve the results of the upload attempt (see GetJobStatus).

Example response body:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": "ok",
    "jobToken": "XXXXXJobTokenXXXXXX",
    "uniqueMsgId": "webs_XXXX"
  }
}

When you use the value of jobToken in a getjobstatus request, the response will look like this if the revokeorgtokens request succeeded:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": null,
    "status": "done",
    "jobResult": {
      "type": "JobResult",
      "status": "DONE"
    },
    "uniqueMsgId": "webs_xxxxxx"
  }
}

If one or more of the tokens to revoke is paired to a user, and you did not set the unpairBeforeDelete parameter to true, the entire revoke request fails. In such cases, the response includes a message field that explains the problem and a pairedSerials object that lists the serial numbers of the paired tokens and the username of the user that each is paired with:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": null,
    "status": "failure",
    "jobResult": {
      "type": "RevokeOathTokensJobResult",
      "status": "FAILURE",
      "pairedSerials": {
        "12345": "username"
      },
      "message": "The following tokens cannot be deleted because they are currently paired to users."
    },
    "uniqueMsgId": "XXXXXXXXXX"
  }
}

UnpairDevice

When a user activates a PingID account, the user must be paired with a mobile device. This specific device is the one the user will use for PingID online authentication. The service provider’s administrator may want to unpair a mobile device from a user, for instance, when the user is switching to a new device.

This is the UnpairDevice URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/unpairdevice/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "userName": "jdoe",
 "deviceId": 64498,
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

userName

String

The username of the user to unpair from their device.

deviceId

Long

Optional.

  • If specified, the device will be unpaired from the user.

  • If the device ID is not specified, all devices are unpaired from the specified user.

The device ID can be retrieved in the GetUserDetails API.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field. Used to track the specific transaction for troubleshooting purposes.

UpdateDeviceAttributes

When a user has more than one device paired they can choose which of their devices will be the default device and set a nickname for each of their devices.

For example if a user pairs two iPhones they can provide them nicknames like "Personal iPhone" and "Work iPhone" and set one of them to be the default device.

This is the UpdateDeviceAttributes URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/updatedeviceattr/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "attributeName": "SET_PRIMARY",
 "attributeValue": "true",
 "userName": "jdoe",
 "deviceId": 64498,
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

attributeName

String

SET_PRIMARY - set a device as a primary device.

NICKNAME - set a nickname for the device.

ORDER - the position (sequence number) of the device in the user’s device list. This determines the order in which devices will be used for authenticating the user, in cases where the primary device can’t be used.

attributeValue

String

For attribute SET_PRIMARY, set this value to "true".

For attribute NICKNAME, set this value to the nickname the user selected for their device.

For attribute ORDER, set this value to an integer in the range of 1 to the user’s number of devices. The ORDER number must be unique within the user’s device list. Assigning the value 1 to ORDER is the same as using the SET_PRIMARY attributeName.

userName

String

The username of the user to update devices for.

deviceId

Long

The ID of the device to update. The device ID can be retrieved in the GetUserDetails API.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code (200 indicates a successful operation)

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

clientData

String

The value sent in the request’s clientData field.

AuthenticatorAppStartPairing

The call to AuthenticatorAppStartPairing causes PingID to generate a pairing key URI which should be embedded in a QR code, and a matching pairing key which allows the user to pair manually.

The user scans the QR code or manually pairs the authenticator app. Then, in the service provider’s application, the user must manually enter the OTP that is displayed in the authenticator app.

To complete the pairing process, the service provider’s application should then call AuthenticatorAppFinishPairing while providing the OTP.

This is the AuthenticatorAppStartPairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/authenticatorappstartpairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "username": "jdoe",
 "pairingType": "TOTP"
}

The parameters included in the reqBody object are:

Parameter DataType Description

username

String

The username of the user, for starting authenticator app pairing.

pairingType

String

The pairing type. Currently, only TOTP is supported.

Response Body Parameters

Example response body:

{
 "sessionId": "oacts_rxodmgpbVkjVltIBVP7C7m6y6ddsOY-a8BYqpDHHxZY",
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y",
 "pairingKeyUri": "otpauth://totp/MyOrg%3Ajdoe%myorg.com?secret=RRHWKYHJZAYBEONJREBUTW3GKL2VLZK2&issuer=MyOrg",
 "pairingKey":"RRHW KYHJ ZAYB EONJ REBU TW3G KL2V LZK2"
}

The parameters included in the responseBody object are:

Parameter DataType Description

sessionId

String

A session ID value that must be sent in the sessionId parameter of the matching AuthenticatorAppFinishPairing call.

errorId

Int

A numeric error code. 200 indicates a successful operation.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

pairingKeyUri

String

Secret keys should be encoded in a QR codes as a URI, using the format: otpauth://totp/{issuer}:{account}?secret={secret}&issuer={issuer}

For further information see https://github.com/google/google-authenticator/wiki/Key-Uri-Format.

issuer

String

The organization’s name.

account

String

The user’s account ID, based on the following:

  • The user’s email address, if available.

  • If there is no user email address available, and the user has both a first name and a last name defined, then the user’s first and last names are concatenated (space separated), for example, "John Doe".

  • If the user’s first and last names are not available, the account is assigned the value of the user’s username.

pairingKey

String

The secret, in a UI-friendly manner.
For example, if the secret is RRHWKYHJZAYBEONJREBUTW3GKL2VLZK2, the pairingKey is RRHW KYHJ ZAYB EONJ REBU TW3G KL2V LZK2.

The pairing key should be used for manual pairing.

deviceId

String

Unique identifier for the device being paired.

deviceUuid

String

UUID representation of the device being paired.

AuthenticatorAppFinishPairing

The call to AuthenticatorAppFinishPairing completes the pairing process initiated by calling AuthenticatorAppStartPairing. The user enters the OTP which is displayed on the Authenticator App.

This is the AuthenticatorAppFinishPairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/authenticatorappfinishpairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "sessionId": "oacts_rxodmgpbVkjVltIBVP7C7m6y6ddsOY-a8BYqpDHHxZY",
 "otp": "123456"
}

The parameters included in the reqBody object are:

Parameter DataType Description

sessionId

String

The sessionId value received in the response to StartOfflinePairing.

otp

String

The one-time password entered by the user. Requires a string of digits and returns an error if other characters or white spaces are used.

Response Body Parameters

Example response body:

{
 "errorId": 200,
 "errorMsg": "",
 "uniqueMsgId":"webs_sOFLeIP0EOlR-BnOCN_DTLv1uMpivQRoFN68edsYi4Y"
}

The parameters included in the responseBody object are:

Parameter DataType Description

errorId

Int

A numeric error code. 200 indicates a successful operation.

errorMsg

String

A textual description of the error, if there was one.

uniqueMsgId

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

WebAuthnStartPairing (FIDO security key, FIDO biometrics, FIDO2 devices)

The WebAuthnStartPairing API is an integral step in the pairing flow for FIDO security keys, FIDO biometrics, and FIDO2 devices. The service provider initiates WethAuthn pairing using the WebAuthnStartPairing API. The WebAuthnStartPairing API returns parameter data for public key credentials. These parameters are required as an input for the next step in the WebAuthn authentication flow, the call to the browser’s navigator.credentials.create function, which will return the public key credentials. For further information, see Example: PingID FIDO security key and Example: PingID FIDO biometrics.

This is the WebAuthnStartPairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/webauthnstartpairing/do

Request Body Parameters

Example reqBody object for security key:

"reqBody": {
   "rpId": "pingone.com",
   "rpName": "PingID Web Authentication",
   "userName": "fidouser1",
   "webauthnType": "WebAuthn",
   "name": "User1",
   "displayName": "User1@pingidentity.com"
}

Example reqBody object for biometrics:

"reqBody": {
   "rpId": "pingone.com",
   "rpName": "PingID Web Authentication",
   "userName": "fidouser1",
   "webauthnType": "webauthn_platform",
   "name": "User1",
   "displayName": "User1@pingidentity.com"
}

The parameters included in the reqBody object are:

Parameter DataType Description

displayName

String

Provide a value for this parameter if you would like to display specific user information text on the account selection screen instead of the default information displayed by the device for the displayName field. The string can be up to 100 characters. (Keep in mind that the actual number of characters that will be displayed is device-dependent.)

name

String

Provide a value for this parameter if you would like to display specific user information text on the account selection screen instead of the default information displayed by the device for the name field. The string can be up to 100 characters. (Keep in mind that the actual number of characters that will be displayed is device-dependent.)

rpId

String

Domain of the service provider. The rpId that is used for pairing must be used for authentication.

rpName

String

Descriptive string or name of the provider’s service.

userName

String

The user’s PingID username.

webauthnType

String

For FIDO security keys, set to WebAuthn. For FIDO biometrics, set the value to webauthn_platform to use the generic email notification template, or set the value to one of the platform-specfic settings to use a platform-specific email notification template: webauthn_platform_windows, webauthn_platform_macintosh, webauthn_platform_android, webauthn_platform_iphone. The value of webauthnType is returned in the displayID parameter. For FIDO2 devices, this parameter is not required.

Response Body Parameters

Example response body:

{
  "responseBody": {
    "clientData": null,
    "errorId": 200,
    "errorMsg": "",
    "sessionId": "9652e5e9-b698-4495-8038-c2f440596972",
    "publicKeyCredentialOptions": "{\"rp\":{\"id\":\"pingone.com\",\"name\":\"PingID Web Authentication\"},\"user\":{\"id\":[-66,8,-83,24,113,124,39,-53,36,106,-87,75,-4,71,-83,46,-115,62,-43,59,-50,27,-56,99,46,78,-31,-120,13,-71,-8,-46],\"displayName\":\"fidouser1@pingidentity.com\",\"name\":\"fidouser1@pingidentity.com\"},\"challenge\":[-110,61,102,122,-28,-117,-55,-65,-101,6,108,89,-70,-75,-31,54,37,-75,-116,-25,13,-113,-49,17,-10,-11,118,-116,87,56,17,35],\"pubKeyCredParams\":[{\"type\":\"public-key\",\"alg\":\"-7\"},{\"type\":\"public-key\",\"alg\":\"-37\"},{\"type\":\"public-key\",\"alg\":\"-257\"}],\"timeout\":120000,\"excludeCredentials\":[],\"authenticatorSelection\":{\"authenticatorAttachment\":\"platform\",\"requireResidentKey\":false,\"userVerification\":\"preferred\"},\"attestation\":\"direct\"}",
    "uniqueMsgId": "webs_ohi_K2NBLZnZpR-avezCrtaKQUwsyKGt4aSXwtD6rEg09so"
  }
}

The parameters included in the responseBody object are:

Parameter DataType Description

clientData

String

This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

deviceId

String

Unique identifier for the device being paired.

deviceUuid

String

UUID representation of the device being paired.

errorId

Int

A numeric response code indicating the success or failure state of the API call.

errorMsg

String

Text describing the state or cause of an unsuccessful API call.

publicKeyCredentialOptions

String

JSON structure containing parameters for retrieving the public key credentials for the FIDO security key, FIDO biometrics, or FIDO2 device.

sessionId

String

The WebAuthn session ID.

WebAuthnFinishPairing (FIDO security key, FIDO biometrics, FIDO2 devices)

The WebAuthnFinishPairing API is an integral step in the pairing flow for FIDO security keys, FIDO biometrics, and FIDO2 devices. The WebAuthnFinishPairing API must follow the call to the browser’s navigator.credentials.create function, which follows a WebAuthnStartPairing API call. The navigator.credentials.create function returns the public key credentials, which are required by the WebAuthnFinishPairing API to complete the pairing process. For further information, see Example: PingID FIDO security key and Example: PingID FIDO biometrics.

This is the WebAuthnFinishPairing URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/WebAuthnFinishPairing/do

Request Body Parameters

Example reqBody object in the API payload:

"reqBody": {
   "rpId": "pingone.com",
   "sessionId": "b6367b8e-1da8-490d-9c6d-6814cb2cfc81",
   "userName": "fidouser1",
   "origin": "https:// admin.pingone.com",
   "publicKeyCredentialJson": "<output from navigator.credentials.create function>"
}

The parameters included in the reqBody object are:

Parameter DataType Description

origin

String

The scheme and domain of the URL that the user wants to access.

publicKeyCredentialJson

String

JSON structure comprising the public key value and metadata parameters.

rpId

String

Domain of the service provider. The rpId that is used for pairing must be used for authentication.

sessionId

String

The session ID returned from a previous call to WebAuthnStartPairing.

userName

String

The user’s PingID username.

PingID Services

In this context, PingID services refers to the type of integration with PingID that is being used, for example, the PingID integration with Windows login.

A number of endpoints can take a service as an optional parameter, for example, userbypass.

A parameter representing the PingID service is also used in authentication flows, where the relevant parameter uses the value web.

The parameter for specifying the PingID service is usually called spAlias.

The following table lists the different values that can be used for the service parameter and explains what each value represents.

Value Description

web

Used with endpoints from the PingID Authentication API

winremote

Used for RDP authentication to a remote Windows computer using the PingID integration with Wndows login

winlocal

Used for authentication on a local Windows computer using the PingID integration with Wndows login

maclocal

Used for authentication on a local Mac computer using the PingID integration with Mac login

vpn

For RADIUS authentication using the RADIUS PCV

ssh

For SSH authentication using the PingID integration with SSH

Job Management

Running Jobs

Use CreateJob to run a job. You can check the job status using GetJobStatus. The status is returned in the jobToken parameter. A status value of "done" indicates that the job executed successfully and the client can continue the job workflow (for example, using GetOrganizationReport). If the status is "failure", contact an administrator for assistance. A status of "in_progress" indicates the client needs to continue polling the job status using GetJobStatus until the status is "done".

CreateJob

A generic interface to asynchronously create PIngID jobs.

This is the CreateJob URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/createjob/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "jobType": "USER_REPORTS",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

jobType

String

Currently, this can be only "USER_REPORTS".

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "jobToken": "DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

jobToken

String

The token assigned to this job. This token is used by other APIs (such as GetJobStatus) to reference this job.

clientData

String

The value sent in the request’s clientData field.

GetJobStatus

Retrieve the status of a job created by a CreateJob operation.

This is the GetJobStatus URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/getjobstatus/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "jobToken": "DTLv1uMpivQRoFN68edsYi4Y",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

jobToken

String

A jobToken value returned by CreateJob. Use this token to get the status of a particular job.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "status": "pending",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the responseBody object are:

Parameter DataType Description

status

String

The current status of the referenced job. This can be any one of the following: "done", "in_progress", "failure", "pending".

clientData

String

The value sent in the request’s clientData field.

GetBulkJobStatus

Accepts a list of job tokens, and returns a map of the job tokens and their statuses.

This is the GetBulkJobStatus URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/getbulkjobstatus/do

Request Body Parameters

Example reqBody object in the API payload:

"reqBody": {
 "jobTokens":["Fg9bVV8BVlpZWRdNRERaVVoHSFdBXhBUSAheAgtTUwwRUUMc","FFpeBFxVVg1ZCkIfFkRaVwxUSFYSWEdUFAwIVwhRVApFDExB"],
 }

The parameters included in the reqBody object are:

Parameter DataType Description

jobTokens

String

List of jobToken values, returned by CreateJob. Use these jobTokens to get the statuses of these jobs.

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

Example response body:

{
 "responseBody": {
   "clientData": null,
   "errorId": 200,
   "errorMsg": null,
   "uniqueMsgId": "webs_nkzHr4xGLvmnh33y-HPD1UZmJDP85P_KlOD1V3aA79Y",
   "jobResults": {
     "FFpeBFxVVg1ZCkIfFkRaVwxUSFYSWEdUFAwIVwhRVApFDExB": {
       "status": "DONE",
       "type": "JobResult"
     },
     "Fg9bVV8BVlpZWRdNRERaVVoHSFdBXhBUSAheAgtTUwwRUUMc": {
       "status": "DONE",
       "type": "JobResult"
     }
   }
 }
}

The parameters included in the responseBody object are:

Parameter DataType Description

clientData

String

The value sent in the request’s clientData field.

errorId

Int

A numeric error code.

errorMsg

String

A textual description of the error, if there was one.

UniqueMsgID

String

A unique ID for the response message. This is logged and used to track the specific transaction for troubleshooting purposes.

jobResults

Map

A map of job tokens and job statuses.

For each jobToken:

  • status: The current status of the referenced job. This can be any one of the following: "done", "in_progress", "failure", "pending".

  • type: The string value "JobResult".

GetOrganizationReport

Retrieves an open stream of the last completed User Reports job.

By design, and for performance purposes, the report is cached for up to two hours. Rerunning the report within two hours of running the previous report will not present updated results.

This is the GetOrganizationReport URL:

https://idpxnyl3m.pingidentity.com/pingid/rest/4/getorgreport/do

Request Body Parameters

Example reqBody object in the API payload:

"reqHeader": { ... },
"reqBody": {
 "fileType": "JSON",
 "clientData": "Session data echoed back to the requestor"
}

The parameters included in the reqBody object are:

Parameter DataType Description

fileType

String

The file format to use for the report. This can be only: "CSV" or "JSON".

clientData

String

Optional. This value is returned unchanged in the API response. It can be used to save state and/or client context data for the application between API calls.

Response Body Parameters

The response body is an open stream. Typically, the client sends the stream to a local file. The output report file has the following layout:

Parameter Description JSON DataType CSV DataType

username

The name of the user in PingID.

String

String

deviceID

The device’s unique ID in PingID.

String

String

status

The status of the user account. The value will be identical on all rows that relate to that user. This value can be:

  • ACTIVE: The user’s PingID account is created, and the user has completed registration and paired the account with a device. The user can perform any of the permitted PingID functions.

  • NOT_ACTIVE: The administrator created the user’s PingID account but either the account is not yet activated, or an activation message and code was sent but the activation code has expired.

  • PENDING: The user started the registration process but did not finish it, and has therefore not paired with a device.

  • PENDING_ACTIVATION: The user account was activated but has not been paired with a device.

  • SUSPENDED: The administrator suspended this user’s ability to be authenticated by PingID. This may occur, for example, for security reasons if a user can’t find the registered device.

String

String

userCreationTime

The date and time that the user was registered in PingID. If more than one row is shown per user, the value will be identical for all of the user’s entries.

Timestamp

String in "yyyy/mm/dd hh:mm:ss" format, UTC timezone

orgEmail

The user’s contact email address. If a user has multiple devices, this email address will be identical on all rows.

String

String

deviceCount

The number of authentication devices registered to this user. This number should match the number of rows of devices for that user, and appear as an identical value on each of that user’s device rows.

Integer

String comprising an integer

deviceType

The type of authenticating device. Possible values:

  • Android

  • iPhone

  • SMS

  • Voice

  • YubiKey

  • Email

  • Desktop

  • Security Key

  • FIDO2 Biometrics

  • Hardware Token

  • Authenticator App

String

String

deviceRole

The role of the device. Possible values: Primary or Secondary.

String

String

devicePairingDate

The date and time that the device was paired.

Timestamp

String in "yyyy/mm/dd hh:mm:ss" format, UTC timezone

deviceModel

The model of the mobile device, tablet, or computer, on which the PingID App is installed.

String

String

osVersion

The version of the operating system of the mobile device, tablet or computer, on which the PingID App is installed.

String

String

appVersion

The PingID mobile app or desktop version installed on the user’s mobile device, tablet, or computer.

String

String

countryCode

The international country dialing code for SMS or Voice authentication.

String

String

phoneNumber

The phone number for SMS or Voice authentication, excluding the international country dialing code.

String

String

yubikeySerialNumber

The serial number of the YubiKey paired with the user account.

String

String

deviceEmail

The email address for an email authentication device type.

String

String

lastTrxTime

The date and time of the most recent successful authentication activity of this user, irrespective of association with a particular authentication device. If a user has multiple devices, the date and time of the last activity will be identical on all rows.

Note: When lastTrxTime is empty, either the user has never performed an authentication, or has last authenticated prior to October, 2018 and never since.

Timestamp

String in "yyyy/mm/dd hh:mm:ss" format, UTC timezone

bypassUntil

For an active user, the entry in this column will be empty. If the admin has configured a user to be able to bypass PingID MFA, the date and time the bypass will expire, or has expired, is reported on each device row for that user.

Timestamp

String in "yyyy/mm/dd hh:mm:ss" format, UTC timezone

lastDeviceTrxTime

The last device transaction time reflects the last time that a particular device was used for authentication. It is not necessarily the last time the user authenticated with any available device.

Note: When lastDeviceTrxTime is empty, either the user has never performed an authentication on the specific device, or has last authenticated with the device prior to March, 2020 and never since.

Timestamp

String in "yyyy/mm/dd hh:mm:ss" format, UTC timezone
